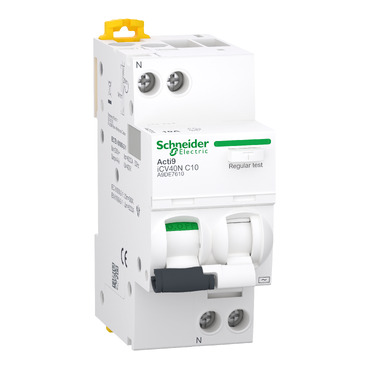

A9 ICV40N 1P+N C 10A 300MA AC RCBO

Cod produs: A9DE7610

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606489444303

Acti9, ICV40N 1P+N C 10A 300MA AC RCBO

Measurements
Built-in depth	44 mm
Width in number of modular spacings	2
Model/type
Number of poles (total)	2
Number of protected poles	1
With interlocking device	Yes
Electrical
Rated insulation voltage Ui	400 V
Rated fault current	0.3 A
Rated short-circuit breaking capacity according to IEC 60947-2	-
Rated short-circuit breaking capacity Icn according to EN 61009-1	6 kA
Rated impulse withstand voltage Uimp	4 kV
Leakage current type	AC
Rated current	10 A
Rated voltage	230 V
Release characteristic	C
Voltage type	AC
Surge current capacity	0.25 kA
Overvoltage category	3
Current limiting class	3
Rated short-circuit breaking capacity according to EN 61009	6 kA
Protection
Degree of protection (IP)	IP20
Options
Anti-nuisance tripping version	No
Concurrently switching neutral conductor	Yes
Mounting/installation
Flush-mounted installation	No
Other
Frequency	50/60 Hz
Pollution degree	3
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Disconnection characteristic	Undelayed
Operating conditions
Ambient temperature during operating	-5 °C
Package 1
volume	320 cm3
weight	230 g
length	10 cm
width	8 cm
qmax	1
qmin	1
um	C62
gtin	3606489444303
Package 2
volume	36000 cm3
weight	12,814 kg
length	40 cm
width	30 cm
qmax	54
qmin	54
um	CT
gtin	43606489444301
Package 3
volume	432000 cm3
weight	114,512 kg
length	120 cm
width	80 cm
qmax	432
qmin	432
um	PF
