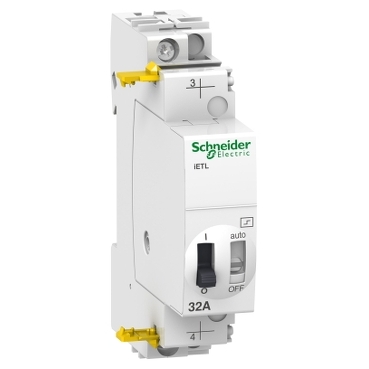

Extensie Etl Itl 32, 1P, 1Nd, 32A, Bobina 110 Vcc, 230, 240 Vca 50/60Hz
Documente
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Rated current | 32 A |
| Type of control voltage 2 | DC |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | 2400 VA |
| Supply voltage | 24 V |
| Max. incandescent lamp load | 4200 W |
| Voltage type (supply voltage) | AC |
| Max. load fluorescent lamp | 3350 VA |
| Max. load fluorescent lamp (Duo circuit) | 5300 VA |
| Control voltage 1 | 230 V |
| Type of control voltage 1 | AC |
| Max. switching current (cos phi = 0.6) | 32 A |
| Control voltage 2 | 110 V |
| Measurements | |
| Built-in depth | 84 mm |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Mechanical |
| Package 1 | |
| volume | 252,672 cm3 |
| weight | 120 g |
| length | 9,4 cm |
| width | 8,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480092039 |
| Package 2 | |
| volume | 2322,9 cm3 |
| weight | 1,011 kg |
| length | 26,7 cm |
| width | 10 cm |
| qmax | 8 |
| qmin | 8 |
| um | BX |
| gtin | 13606480092036 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 9,683 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 43606480092037 |
