Descriere

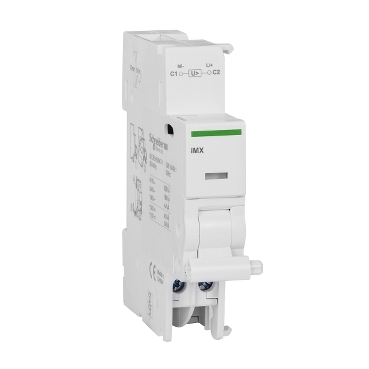

Acest dispozitiv auxiliar electric Acti9 iMX este bobina de declansare la emisie de tensiune. Este compatibil cu gamele Acti9, cum ar fi iC60, iID, iSW-NA. Latimea in module de 9 mm este de 2. Tensiunea circuitului de control Uc este 100...415 V c.a. sau 110...130 V c.c. Se poate monta pe sina DIN pentru instalare modulara. Culoarea produsului este alb (RAL9003). Temperatura de functionare este de la -25°C la + 50°C. Temperatura de depozitare este de -40°C la +85°C. Acest produs este in conformitate cu standardul SR EN 60947-5-1.
Documente
Specificatii
| Electrical | |
| Rated voltage | 415 V |
| Rated switch current | - |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Shunt release (for power circuit breaker) |
| Measurements | |
| Width in number of modular spacings | 1 |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 210,56 cm3 |
| weight | 72 g |
| length | 9,4 cm |
| width | 2,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480087950 |
| Package 2 | |
| volume | 2295 cm3 |
| weight | 633 g |
| length | 27 cm |
| width | 10 cm |
| qmax | 8 |
| qmin | 8 |
| um | BX |
| gtin | 13606480087957 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,111 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 43606480087958 |
