Descriere

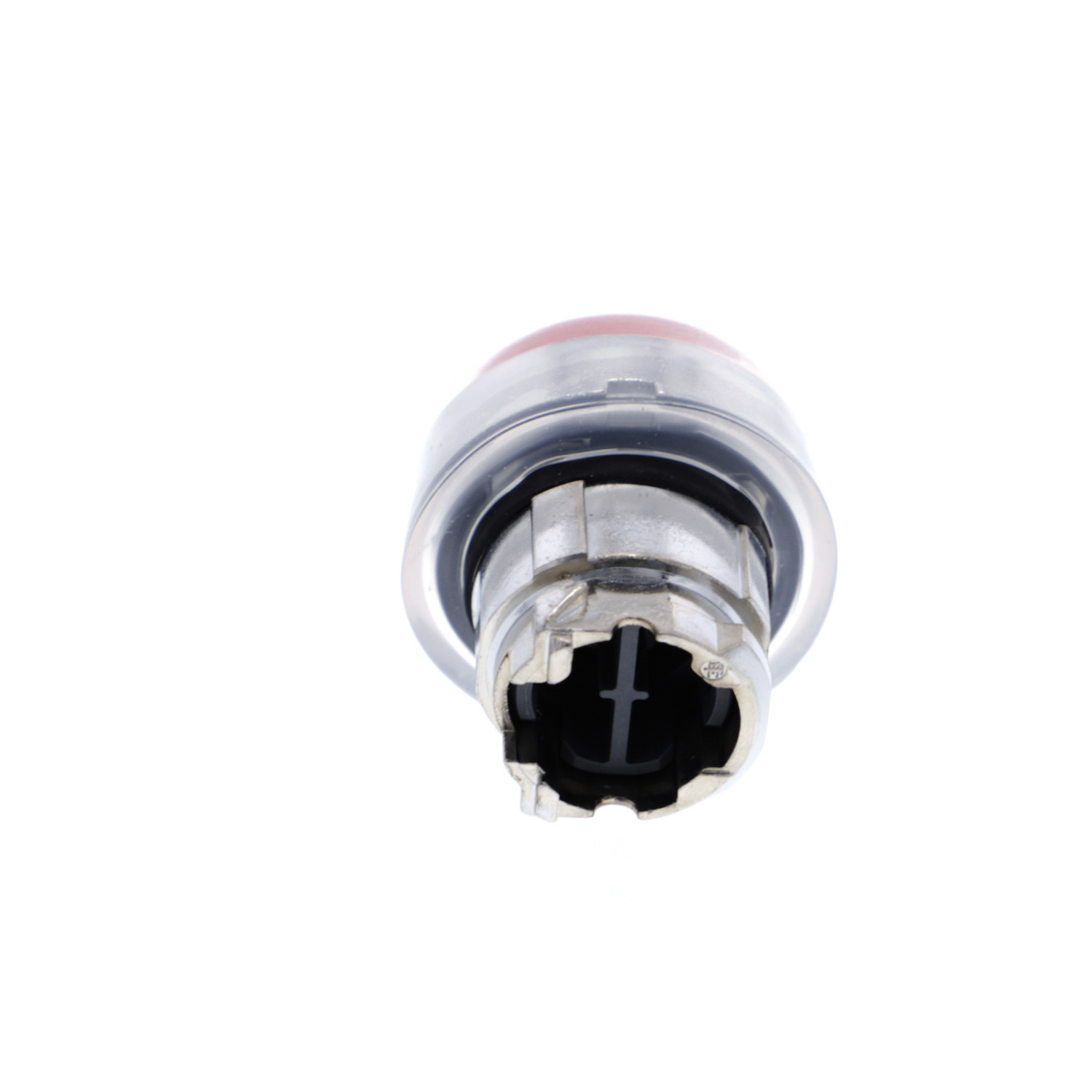

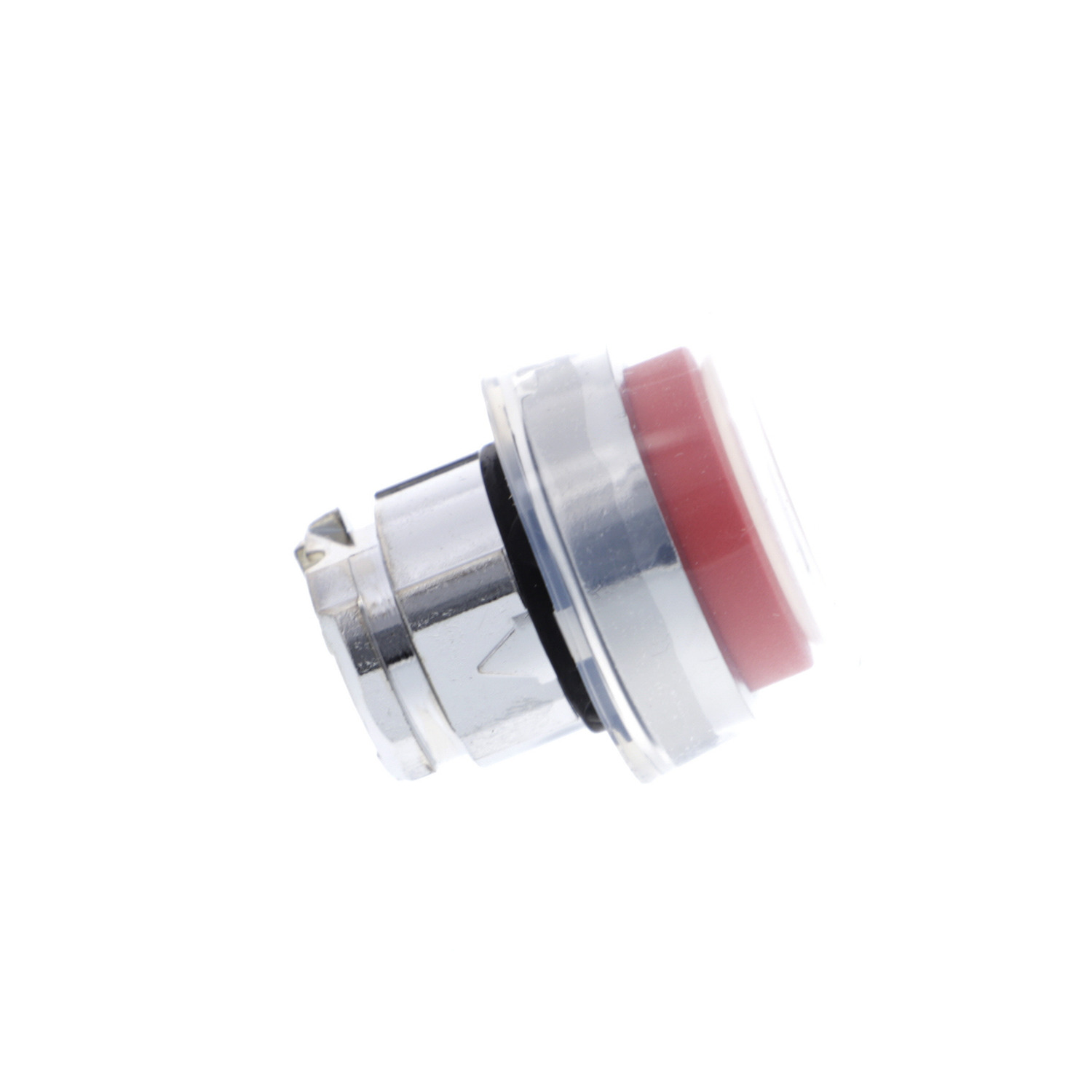

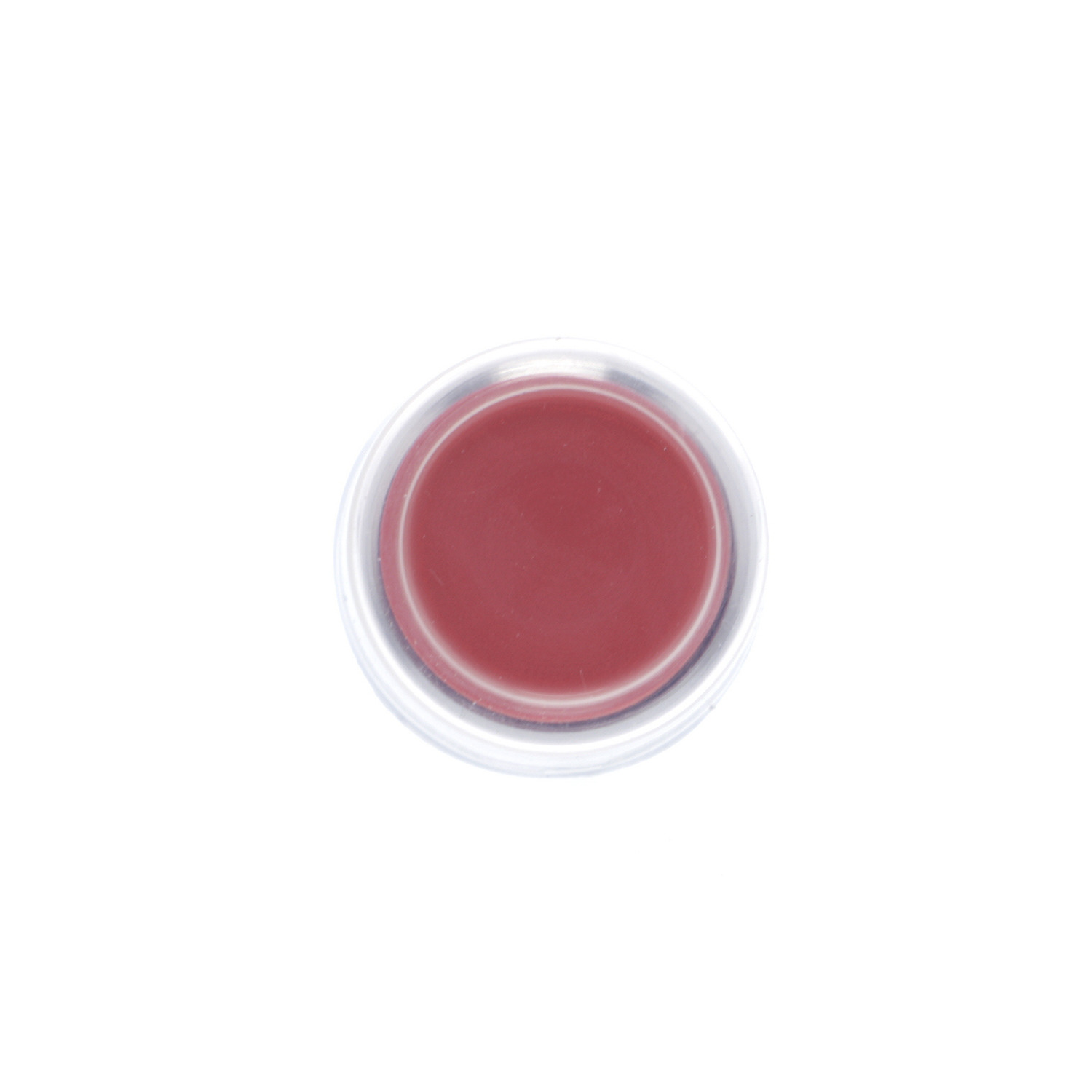

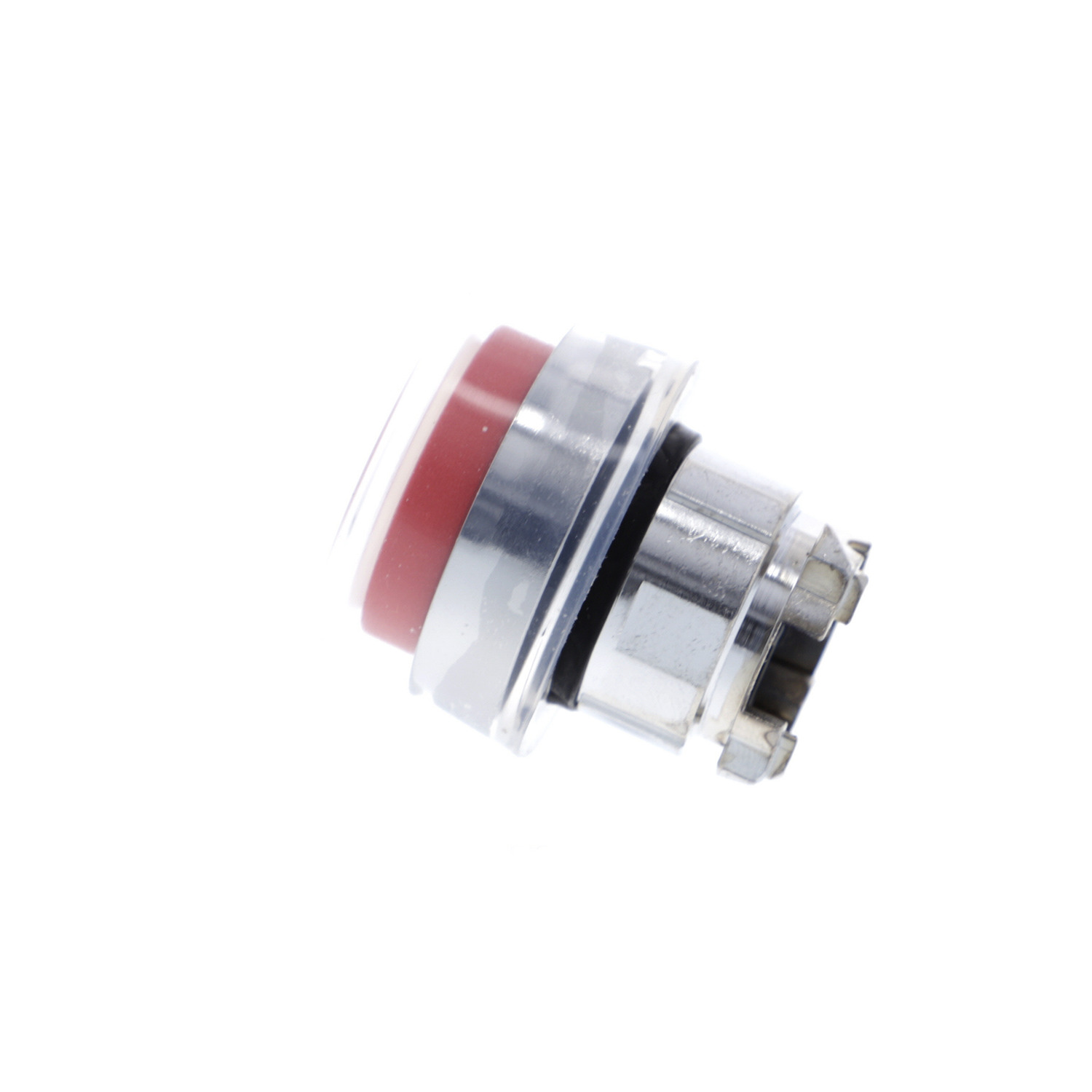

Cap de Buton Proeminent Rosu Ø22, cu Revenire cu Arc, Nemarcat
Documente
Specificatii
| Options | |
| Labelled | No |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Red |
| Model/type | |
| With protective cover | No |
| Type of button | High |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Material | |
| Material front ring | Metal |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | Other |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 82,62 cm3 |
| weight | 32 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110888003 |
| Package 2 | |
| volume | 405,45 cm3 |
| weight | 161 g |
| length | 26,5 cm |
| width | 3,4 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 53389110888008 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,08 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 43389110888001 |
| Package 4 | |
| weight | 90,564 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 2400 |
| qmin | 2400 |
| um | PF |
