Descriere

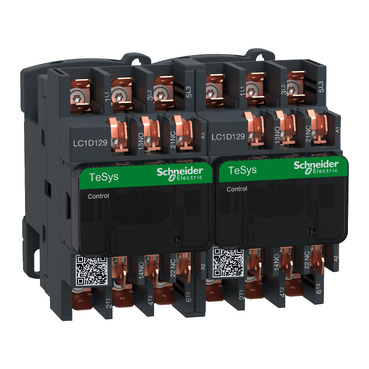

Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <= 440V 12A, 24V AC coil
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Other |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Other |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Rated operation power NEMA | 5.59 kW |
| Rated operation current Ie at AC-1, 400 V | 25 A |
| Rated operation current Ie at AC-3, 400 V | 12 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Reversing contactor |
| Package 1 | |
| volume | 1529,5 cm3 |
| weight | 755 g |
| length | 11,5 cm |
| width | 14 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110664690 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,5 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 16 |
| qmin | 16 |
| um | CT |
| gtin | 13389110664697 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 108 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 128 |
| qmin | 128 |
| um | PF |
