Descriere

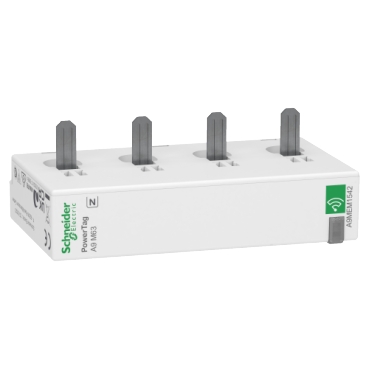

Acti9, Powertag, 3P+N, Pozitie Sus, Maximum 63A, Senzor De Energie
Documente
Specificatii
| Electrical | |
| Max. current (Imax) | 63 A |
| Nominal voltage (Un) L-L | 380 V |
| Nominal current (In) | 63 A |
| Nominal voltage (Un) N-L | 220 V |
| Other | |
| Frequency | 50 Hz |
| Pulse output | None |
| Pulse rate | - |
| Accuracy class | B |
| Model/type | |
| Model | Direct measurement |
| Pulse type | - |
| Energy type | Effective power and reactive power |
| Number of positions total (counter) | - |
| Tariff type | One-tariff |
| Type of indication | None |
| Pole type | Four conductor |
| Measurement type load profile | No |
| With lock code | No |
| Type of meter | Electronic |
| Options | |
| Calibrated | Yes |
| Escapement mechanism | No |
| EEC40 signature | No |
| Approval/certification | |
| Approval | Domestic |
| Measurements | |
| Width in number of modular spacings | 4 |
| Height | 16.5 mm |
| Width | 72 mm |
| Depth | 43 mm |
| Setting/control | |
| Tariff control | - |
| Communication | |
| Type of interface | Other |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Mounting/installation | |
| Mounting method | Plug-in technique |
| Application | |
| Suitable for | Purchase |
| Package 1 | |
| volume | 255 cm3 |
| weight | 62 g |
| length | 8,5 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480909177 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,34 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 48 |
| qmin | 48 |
| um | CT |
| gtin | 43606480909175 |
