Descriere

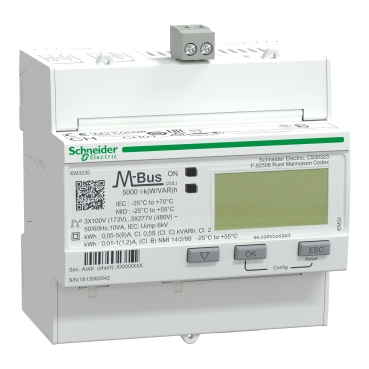

Contor Energie Iem3235, Ct, M-Bus, 1 Digital I, 1 Digital O, Multi-Tarif
Documente
Specificatii
| Electrical | |
| Max. current (Imax) | 6 A |
| Nominal voltage (Un) L-L | 173 V |
| Nominal current (In) | 5 A |
| Nominal voltage (Un) N-L | 100 V |
| Other | |
| Frequency | 50 Hz |
| Pulse output | Electrical |
| Pulse rate | 0 Imp/kWh (kvarh) |
| Accuracy class | C |
| Model/type | |
| Model | Measurement transformer |
| Pulse type | D0 |
| Energy type | Effective power and reactive power |
| Number of positions total (counter) | 9 |
| Tariff type | Multi-tariff |
| Type of indication | Digital |
| Pole type | Three conductor/four conductor |
| Measurement type load profile | No |
| With lock code | No |
| Type of meter | Electronic |
| Options | |
| Calibrated | No |
| Escapement mechanism | No |
| EEC40 signature | No |
| Approval/certification | |
| Approval | Measuring Instruments Directive |
| Measurements | |
| Width in number of modular spacings | 5 |
| Height | 95 mm |
| Width | 90 mm |
| Depth | 69 mm |
| Setting/control | |
| Tariff control | Internal/external |
| Communication | |
| Type of interface | M-bus (wired) |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Application | |
| Suitable for | Purchase/supply |
| Package 1 | |
| volume | 868,56 cm3 |
| weight | 358 g |
| length | 10,5 cm |
| width | 9,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480616501 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 11,317 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606480616509 |
| Package 3 | |
| volume | 768000 cm3 |
| weight | 198,096 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
