Controller

Cod produs: XD2GA8411

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3389110611441

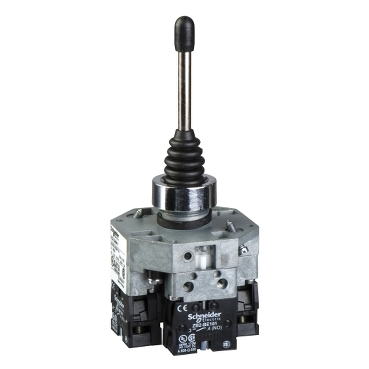

Joystick Controler Ø22 4-Directii 1No Per Directie

Electrical
Rated operation current Ie at AC-21, 400 V	10 A
Model/type
With retraction in 0-position	No
With front ring	Yes
Connection
Number of normally open contacts per actuation direction	1
Number of make-and-break contacts per direction	0
Number of normally closed contacts per actuation direction	0
Colour
Colour front ring	Chrome
Options
Coder	No
Analogue output signal configurable	No
Locking in 0-position	No
Setting/control
Number of switch positions	4
Number of actuation directions	4
Measurements
Joy stick length	87 mm
Centre mounting, hole diameter	22 mm
Material
Material front ring	Metal
Protection
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Package 1
volume	1353,75 cm3
weight	386 g
length	15 cm
width	9,5 cm
qmax	1
qmin	1
um	C62
gtin	3389110611441
Package 2
volume	18000 cm3
weight	2,62 kg
length	40 cm
width	30 cm
qmax	6
qmin	6
um	CT
gtin	43389110611449

Afiseaza mai multe specificatii
