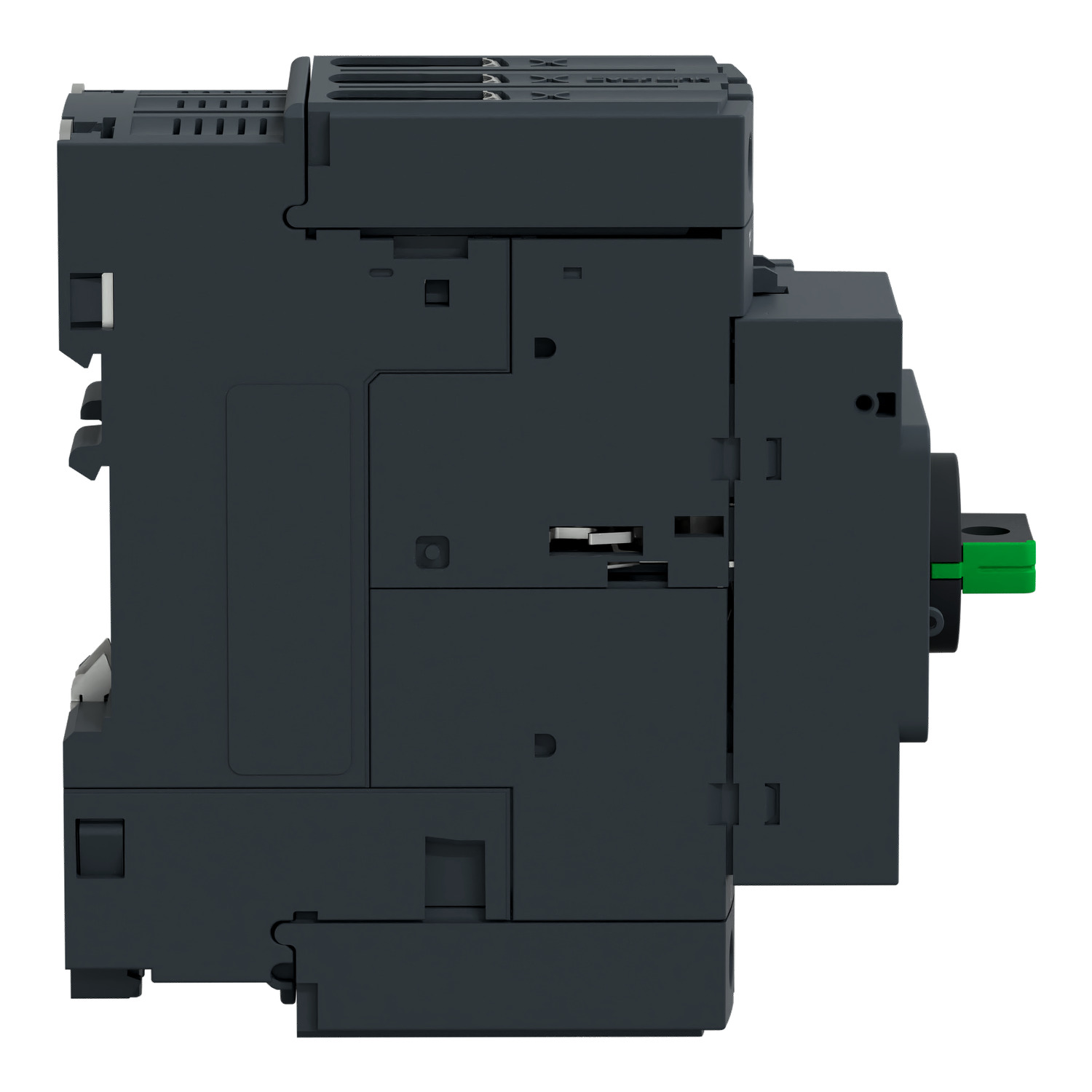

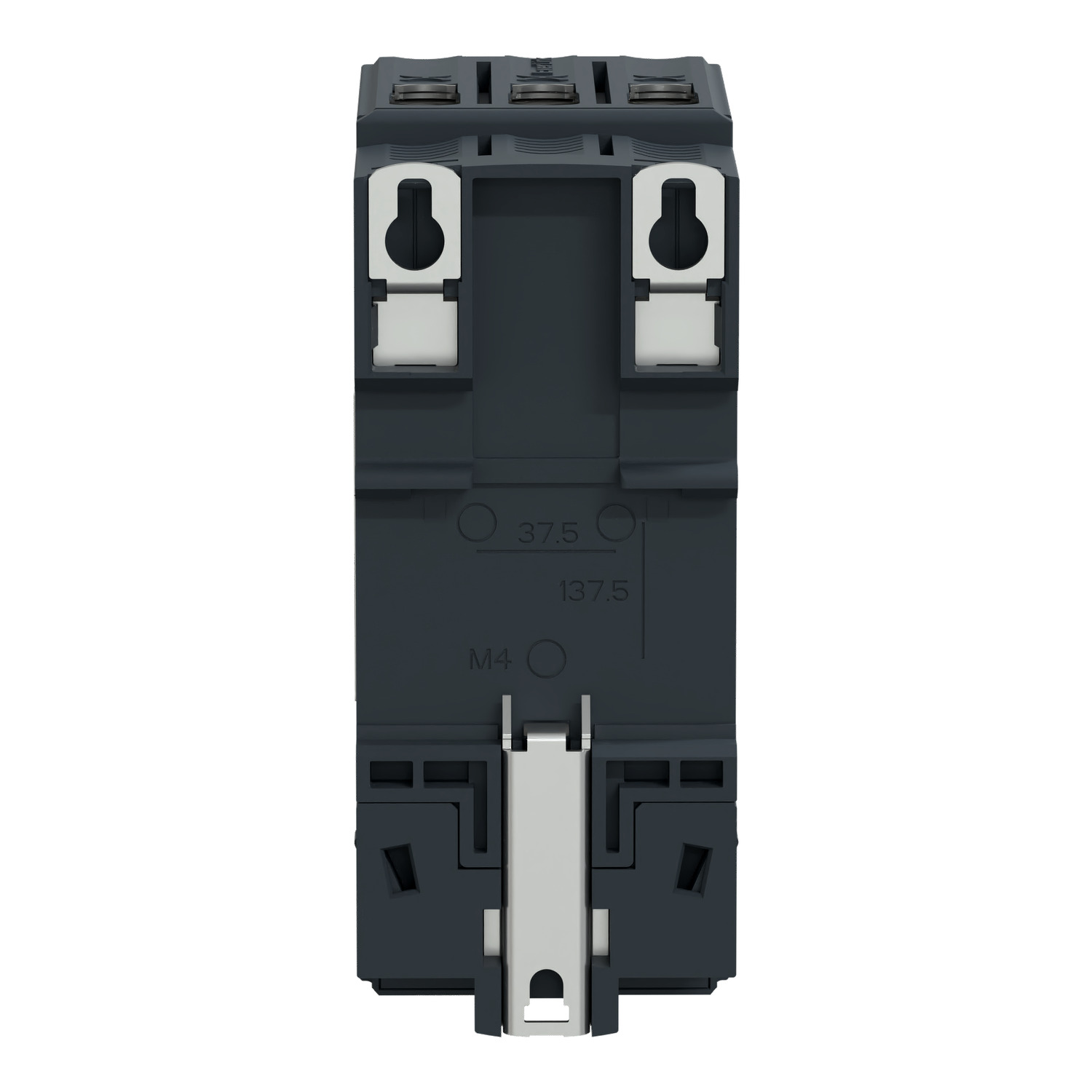

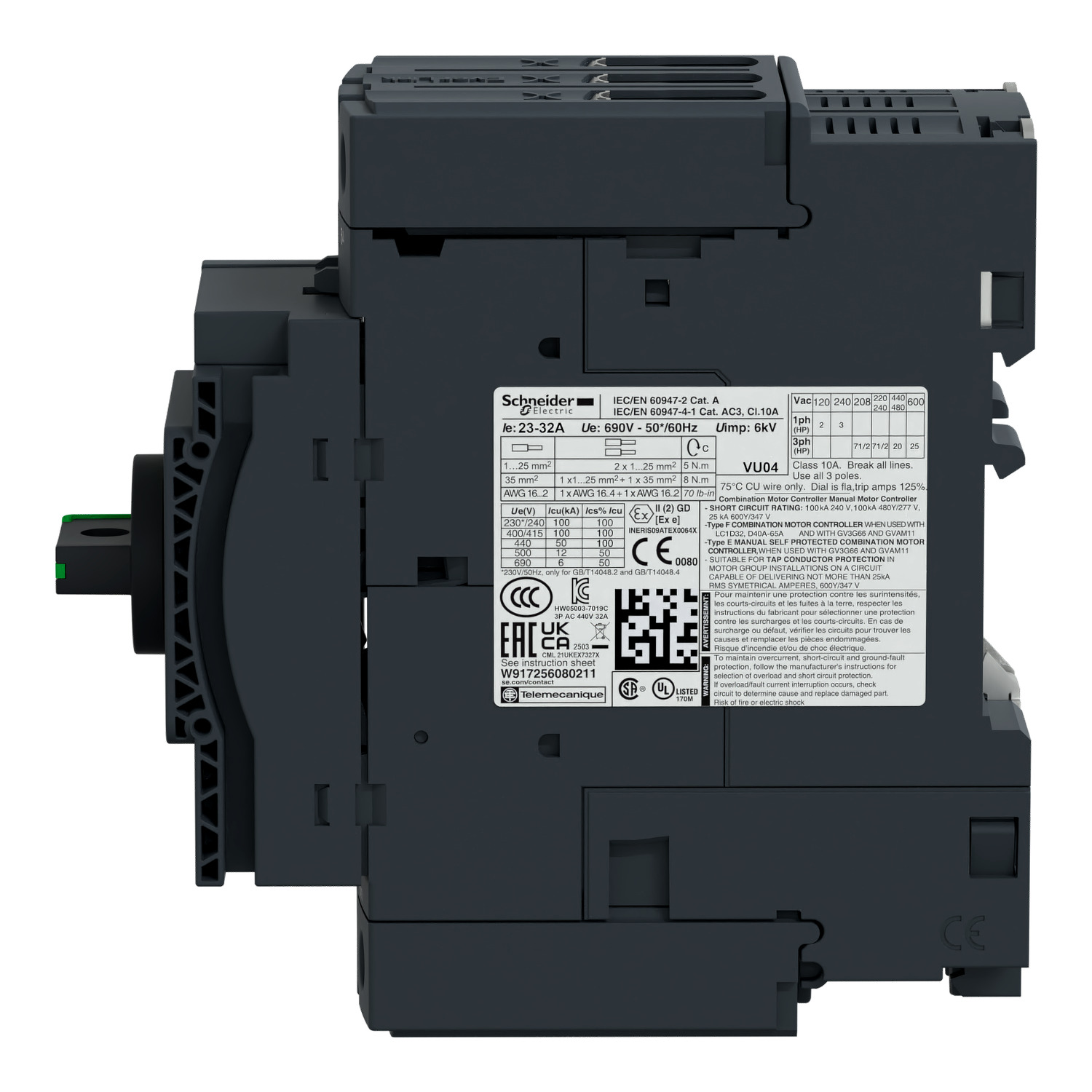

Disjunctor Motor Gv3P - 13 A - 3 Poli 3D - Unit. Decl. Magnetica
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Measurements | |
| Width | 55 mm |
| Depth | 136 mm |
| Height | 132 mm |
| Model/type | |
| Type of control element | Turn button |
| With integrated auxiliary switch | No |
| With thermal overload protection | Yes |
| Electrical | |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Overload release current setting | 9 A |
| Rated permanent current Iu | 13 A |
| Rated operating voltage | 690 V |
| Rated operation power at AC-3, 230 V | 3 kW |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 182 A |
| Other | |
| Switch off technique | Thermomagnetic |
| Device construction | Complete device in housing |
| Options | |
| Phase failure sensitive | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 1460,875 cm3 |
| weight | 982 g |
| length | 14,5 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119405355 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 71,92 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 60 |
| qmin | 60 |
| um | PF |
| gtin | 43389119405353 |
