Descriere

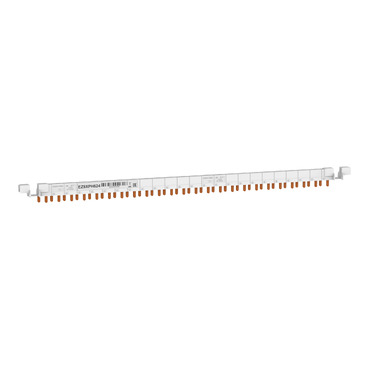

Acest produs Easy9 este o bara colectoare tip pieptene orizontala, decupabila, de 24 de module. accepta dispozitive 1P+N sau 2P. Tipul de distributie este (N+1L). Este adecvat pentru 24 de aparate 1P+N, fara dispozitive auxiliare asociate. Distanta dintre fiecare pin este de 18mm. Curentul operational nominal Ie la 40°C este de 100 A. Tensiunea de izolare nominala Ui este de 500 V c.a. Tensiunea operationala nominala Ue este 230 V c.a. (faza/neutru). Culoarea dispozitivului este alb RAL9003. Gradul de poluare este de 3. In conformitate cu standardul IEC 60695-2-1, rezistenta la incendiu se autostingere la 850°C in decurs de 30 s. Este in conformitate cu standardele IEC 60664 si IEC 60439-1.
Documente
Specificatii
| Measurements | |
| Length | 440 mm |
| Cross section | - |
| Width in number of modular spacings | 24 |
| Module width | 9 mm |
| Colour | |
| Colour | Grey |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 63 A |
| Number of poles | 2 |
| Max. rated operation voltage Ue | 230 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 24 |
| Package 1 | |
| volume | 363,75 cm3 |
| weight | 162 g |
| length | 48,5 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489940690 |
| Package 2 | |
| volume | 3003 cm3 |
| weight | 1,382 kg |
| length | 52,5 cm |
| width | 11 cm |
| qmax | 8 |
| qmin | 8 |
| um | BX |
| gtin | 13606489940697 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 11,842 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 64 |
| qmin | 64 |
| um | CT |
| gtin | 43606489940698 |
| Package 4 | |
| weight | 55,312 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 256 |
| qmin | 256 |
| um | PF |
