Descriere

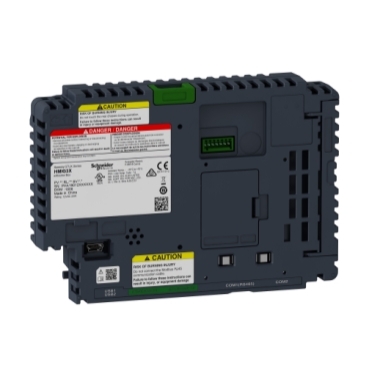

Harmony GTUX Serie eXtreme Box Utilizare in exterior, robust, acoperit
Documente
Specificatii
| Model/type | |
| With message indication | No |
| With numeric keyboard | No |
| Number of grey-scales/blue-scales of display | - |
| With alpha numeric keyboard | No |
| Number of buttons with LED | 0 |
| With message system (incl. buffer and confirmation) | No |
| Type of display | - |
| With printer output | Yes |
| With recipes | Yes |
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 3 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| With SW interfaces | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces industrial Ethernet | 5 |
| Number of HW-interfaces RS-232 | 2 |
| Setting/control | |
| Number of function buttons, programmable | 0 |
| Number of system buttons | 0 |
| Performance | |
| Usable project memory/user memory | 512 kByte |
| Protection | |
| Degree of protection (NEMA), front side | - |
| Degree of protection (IP), front side | IP67 |
| Options | |
| Radio standard GPRS | No |
| Process value representation (output) possible | Yes |
| Process default value (input) possible | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Additional software components, loadable | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| Colour display | - |
| IO link master | No |
| Other | |
| Number of online languages | 10 |
| Touch technology | - |
| Number of pixels, horizontal | - |
| Number of pixels, vertical | - |
| Operating conditions | |
| Operating temperature | -30 °C |
| Measurements | |
| Screen diagonal | - |
| Built-in depth | 45 mm |
| Width of the front | 188 mm |
| Height of the front | 131 mm |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 12 V |
| Colour | |
| Number of colours of the display | - |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | No |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 7939,4 cm3 |
| weight | 1,098 kg |
| length | 26,5 cm |
| width | 21,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489747930 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 5,5 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 13606489747937 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 34 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
