Descriere

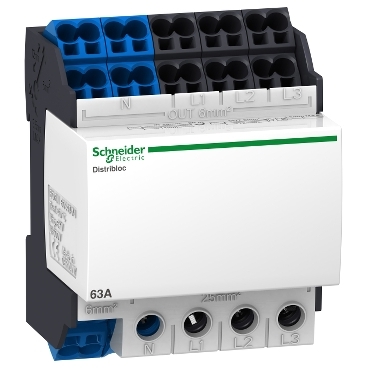

LINERGY DX 4P 63A 24 gauri alimentare jos
Documente
Specificatii
| Measurements | |
| Width | 72 mm |
| Depth | 62 mm |
| Height | 96.5 mm |
| Connection | |
| Number of inputs | 4 |
| Number of outputs | 12 |
| Conductor cross section, output | 2.5 mm² |
| Conductor cross section, input | 16 mm² |
| Conductor cross section, output AWG | - |
| Conductor cross section, input AWG | - |
| Connection type | Screw-/spring clamp connection |
| Application | |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for solid conductors | Yes |
| Suitable for extra fine-strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve | Yes |
| Electrical | |
| Nominal current | 63 A |
| Number of poles | 4 |
| Options | |
| Contact safe | Yes |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| volume | 612,612 cm3 |
| weight | 313,6 g |
| length | 10,2 cm |
| width | 7,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482164574 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9,808 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606482164572 |
