Descriere

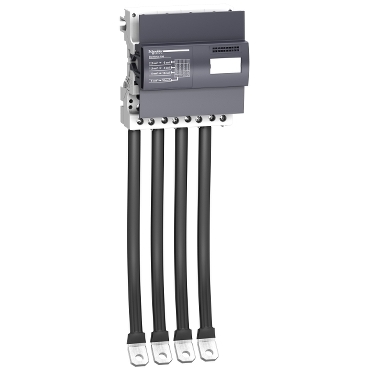

LINERGY DX 4P BLK,NG160 160 160A 6M 52 gauri
Documente
Specificatii
| Measurements | |
| Width | 108 mm |
| Depth | 48 mm |
| Height | 127 mm |
| Connection | |
| Number of inputs | - |
| Number of outputs | - |
| Conductor cross section, output | - |
| Conductor cross section, input | - |
| Conductor cross section, output AWG | - |
| Conductor cross section, input AWG | - |
| Connection type | Without screws |
| Application | |
| Suitable for stranded conductors | No |
| Suitable for fine strand conductors | No |
| Suitable for solid conductors | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Electrical | |
| Nominal current | 160 A |
| Number of poles | 4 |
| Options | |
| Contact safe | Yes |
| Mounting/installation | |
| Mounting method | DIN-rail/screw |
| Package 1 | |
| volume | 3626 cm3 |
| weight | 1,213 kg |
| length | 24,5 cm |
| width | 14,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481870902 |
| Package 2 | |
| volume | 537600 cm3 |
| weight | 137 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 104 |
| qmin | 104 |
| um | PF |
