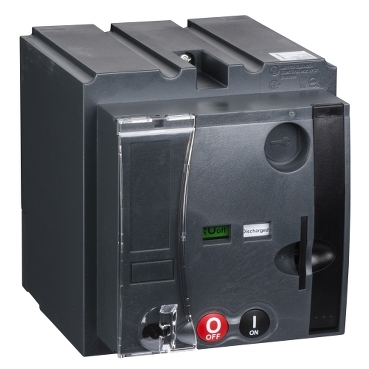

MOTORIZARE 220-240V 50/60 208-277V 60H

Cod produs: LV432641

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480020179

Descriere

Mecanism motor - MT400/630 - 208 - 277 V 60Hz / 220 - 240 V 50/60Hz

Documente

logo-pdf MOTORIZARE 220-240V 50/60 208-277V 60H

Link

Specificatii

Electrical
Rated control supply voltage AC 50 Hz	220 V
Rated control supply voltage AC 60 Hz	208 V
Rated control supply voltage DC	-
Voltage type for actuating	AC
Model/type
Type of switch drive	Motor drive
Package 1
volume	6063,75 cm3
weight	3,104 kg
length	17,5 cm
width	17,5 cm
qmax	1
qmin	1
um	C62
gtin	3606480020179
Package 2
volume	72000 cm3
weight	19,326 kg
length	60 cm
width	40 cm
qmax	6
qmin	6
um	CT
gtin	43606480020177
Package 3
volume	480000 cm3
weight	88,506 kg
length	120 cm
width	80 cm
qmax	24
qmin	24
um	PF
gtin	73606480020178

Afiseaza mai multe specificatii
