Descriere

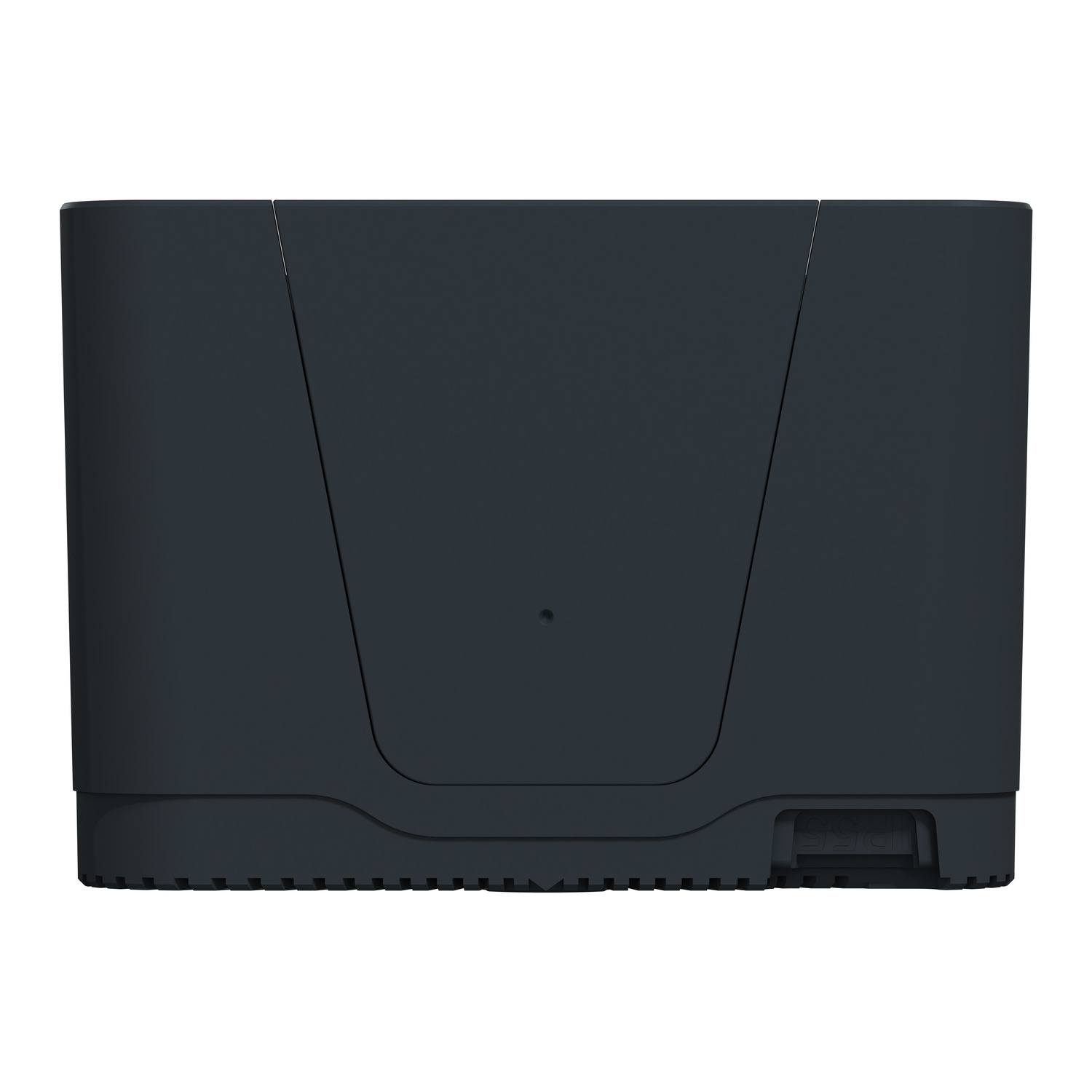

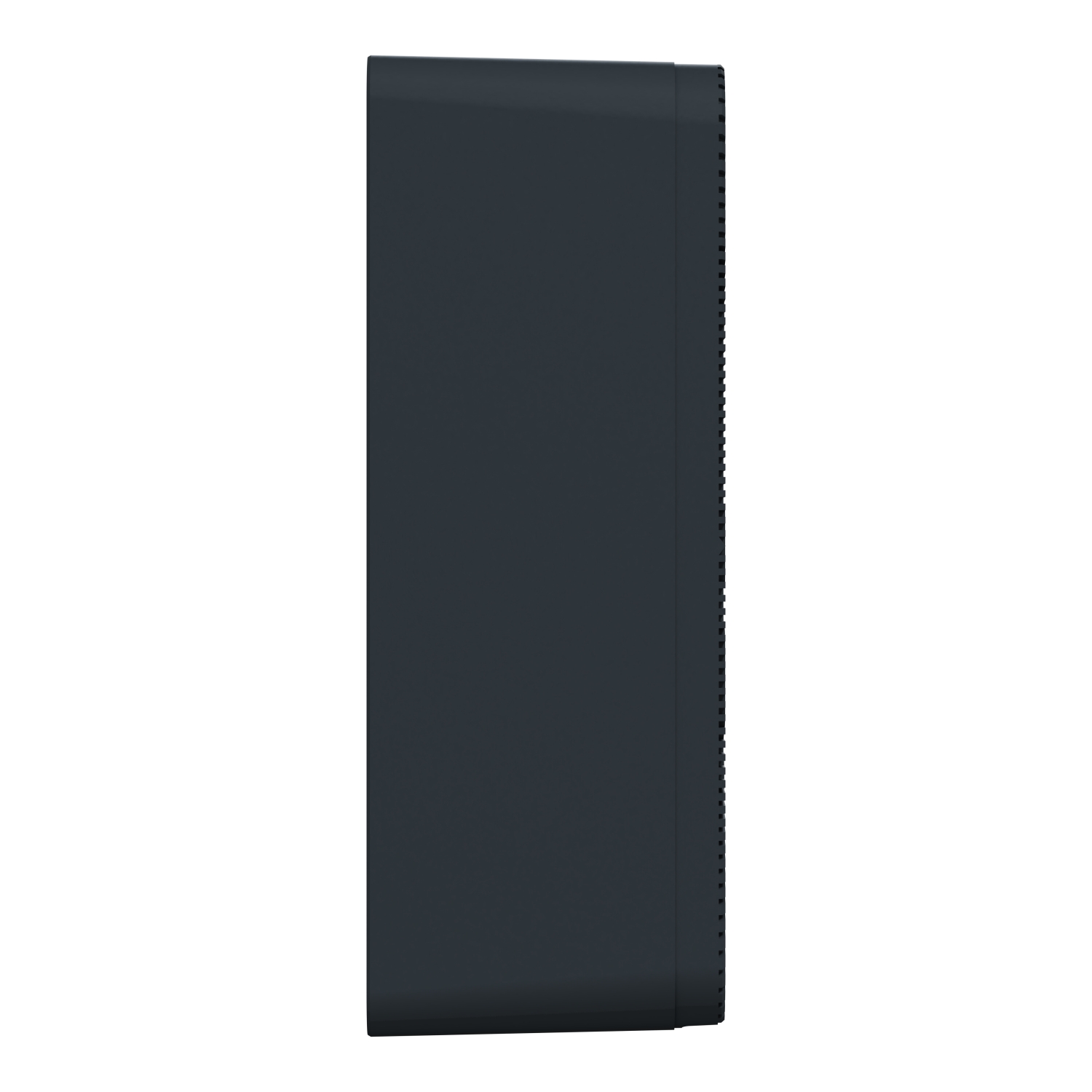

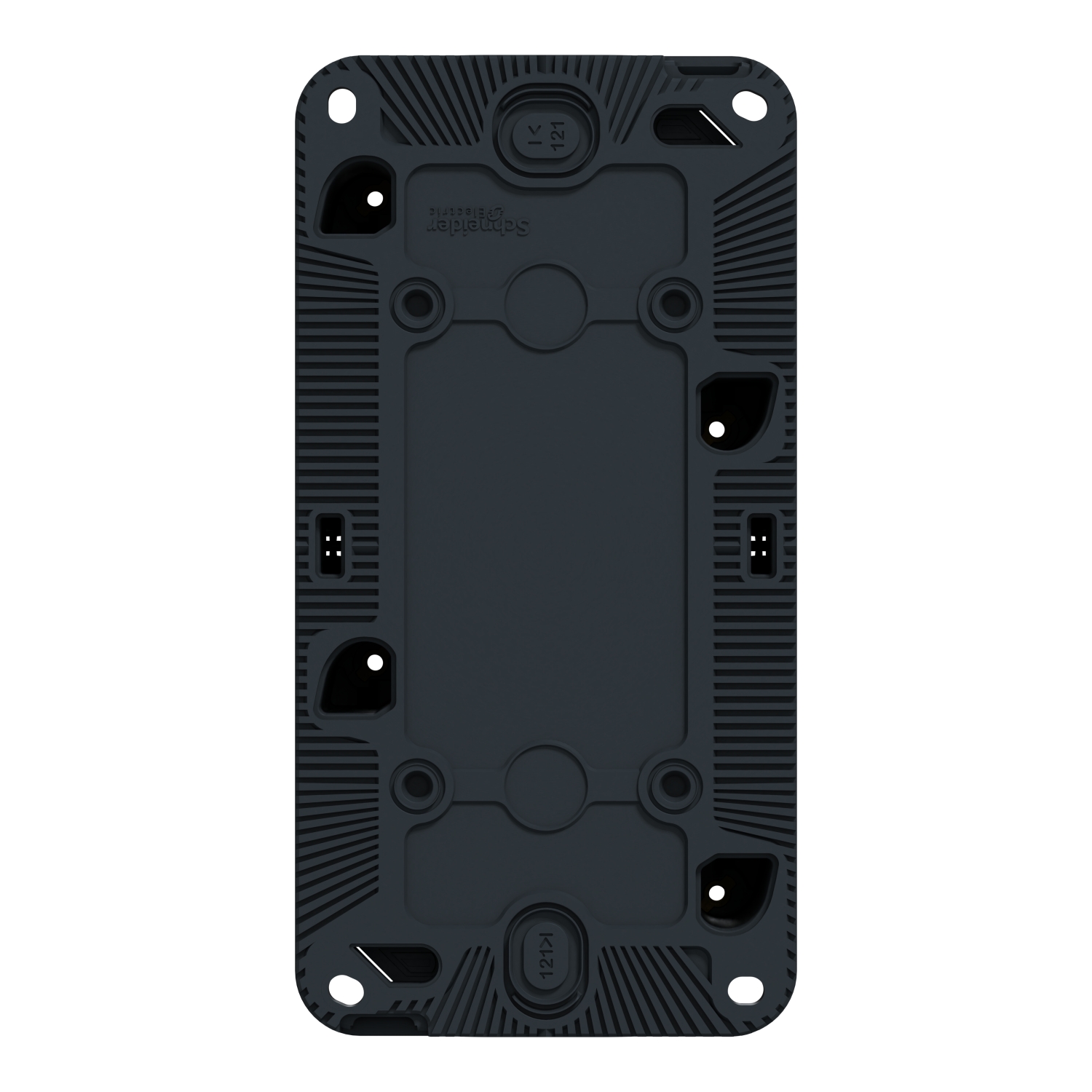

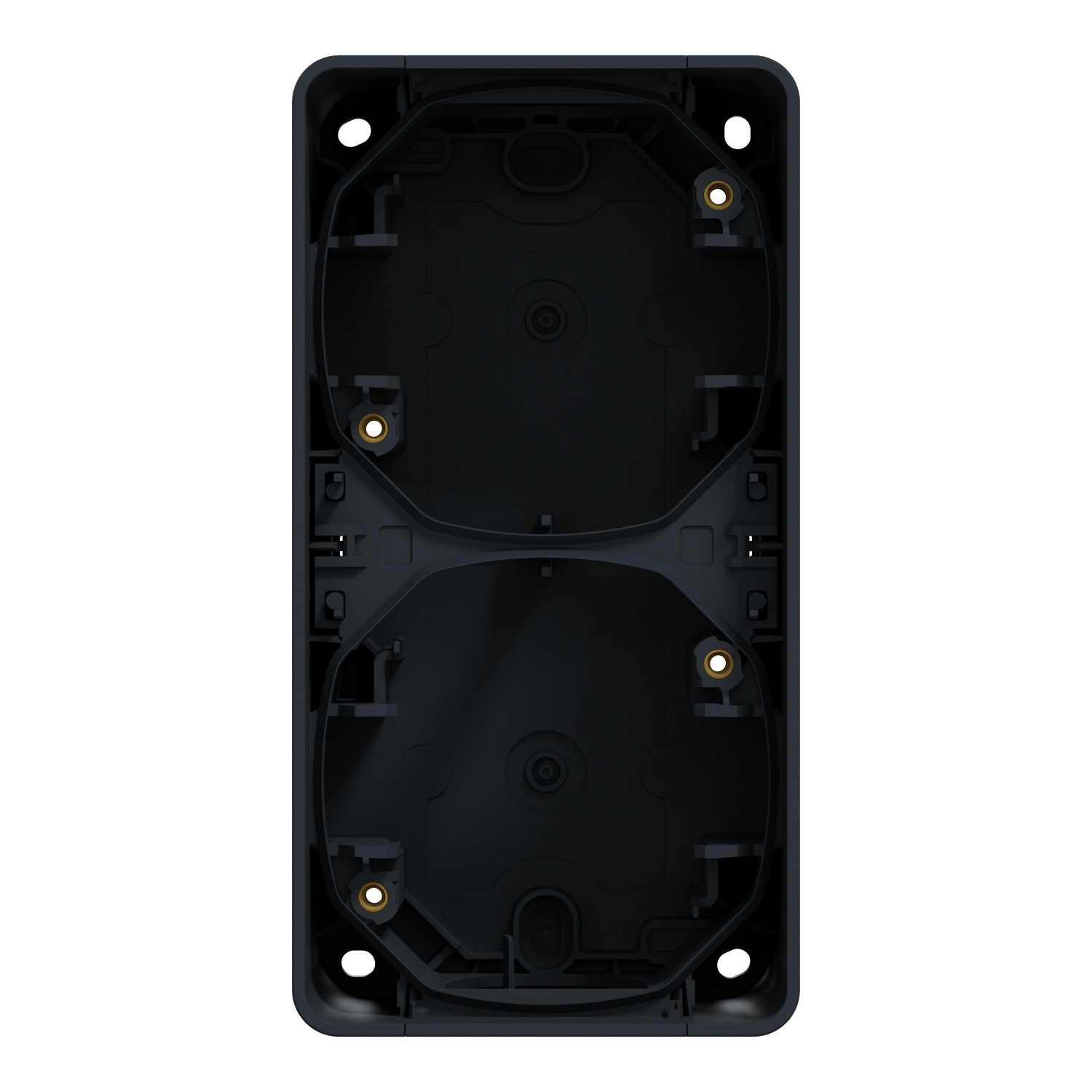

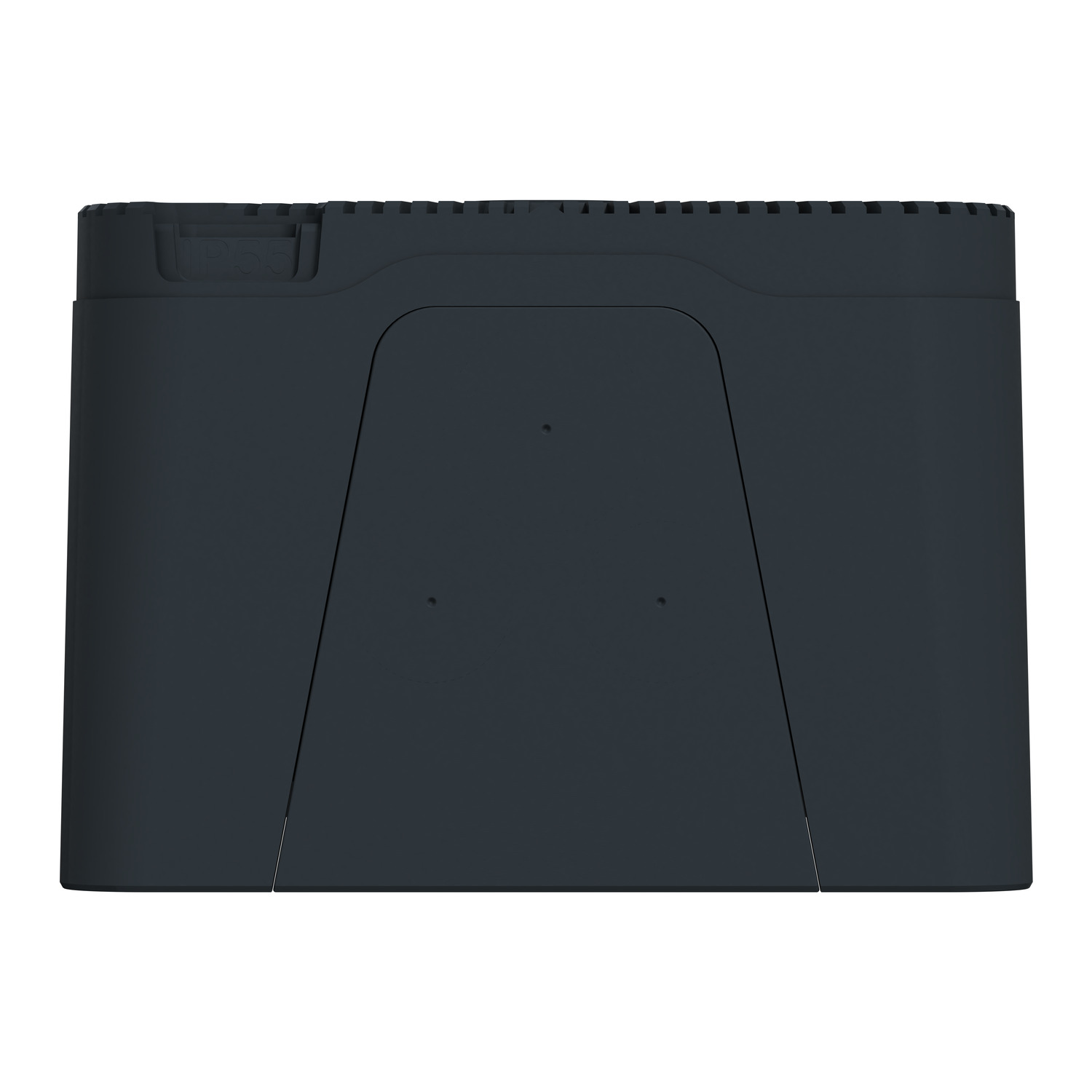

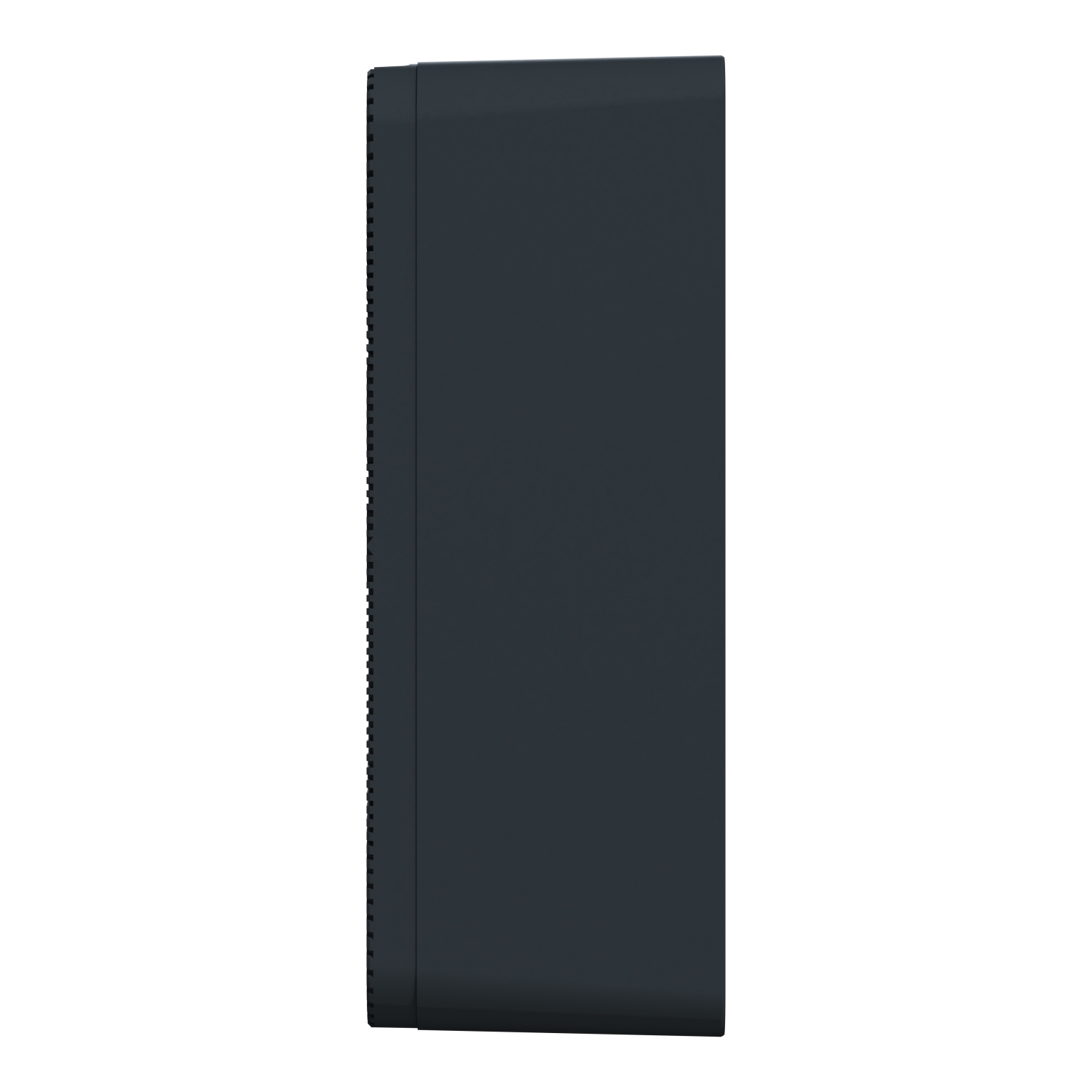

Doza verticala cu 2 posturi pentru montaj aparent Mureva Styl montata pe suprafata este un dispozitiv robust si impermeabil atunci cand este asociat cu o rama cu capac Mureva Styl. Manipulare usoara datorita spatiului sau mare de cablare. Se pot instala 2 mecanisme de 2 module. Acest produs poate fi folosit atat in interior, cat si in exterior, pe verticala. Dimensiunile sale sunt: 54 mm inaltime si adancime si 147 mm lungime
Documente
Specificatii
| Colour | |
| Colour | Grey |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| Mounting direction | Vertical |
| Cross-trunking mounting | - |
| Measurements | |
| Device width | 147 mm |
| Device height | 54 mm |
| Device depth | 54 mm |
| Model/type | |
| With cover frame | No |
| With duct entry | No |
| Assembly arrangement | Surface mounted box |
| With cable entry | Yes |
| Number of modules (module system) | - |
| Shape | Rectangular |
| With screw gland entry | No |
| Number of units | 2 |
| Protection | |
| Shock resistant | Yes |
| Degree of protection (IP) | IP55 |
| Application | |
| Suitable for modular domestic switching devices | No |
| Package 1 | |
| volume | 607,392 cm3 |
| weight | 122 g |
| length | 14,8 cm |
| width | 7,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789908 |
| Package 2 | |
| volume | 6120 cm3 |
| weight | 709 g |
| length | 40 cm |
| width | 17 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480789905 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 4,987 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606480789906 |
| Package 4 | |
| weight | 30,948 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 120 |
| qmin | 120 |
| um | PF |
