Descriere

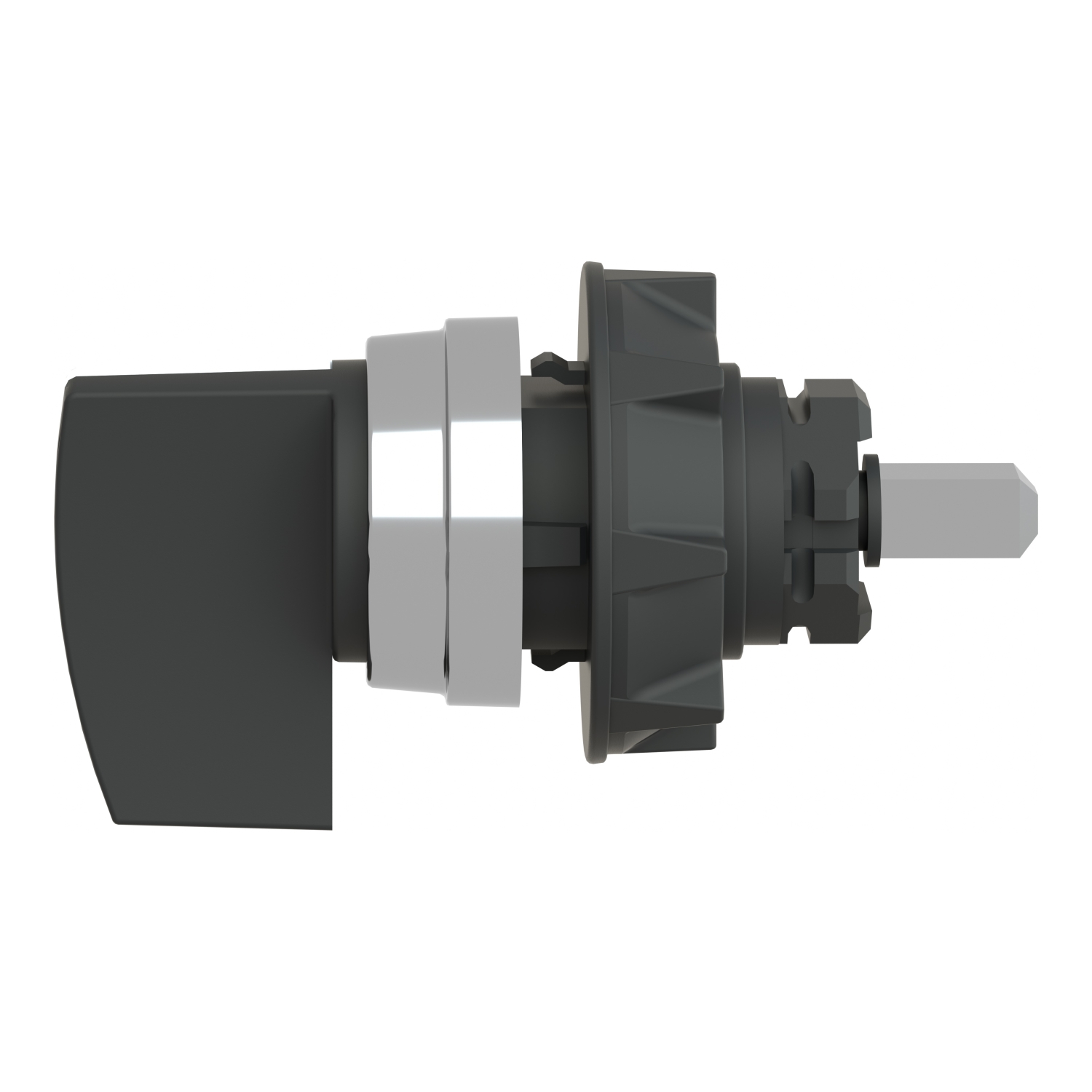

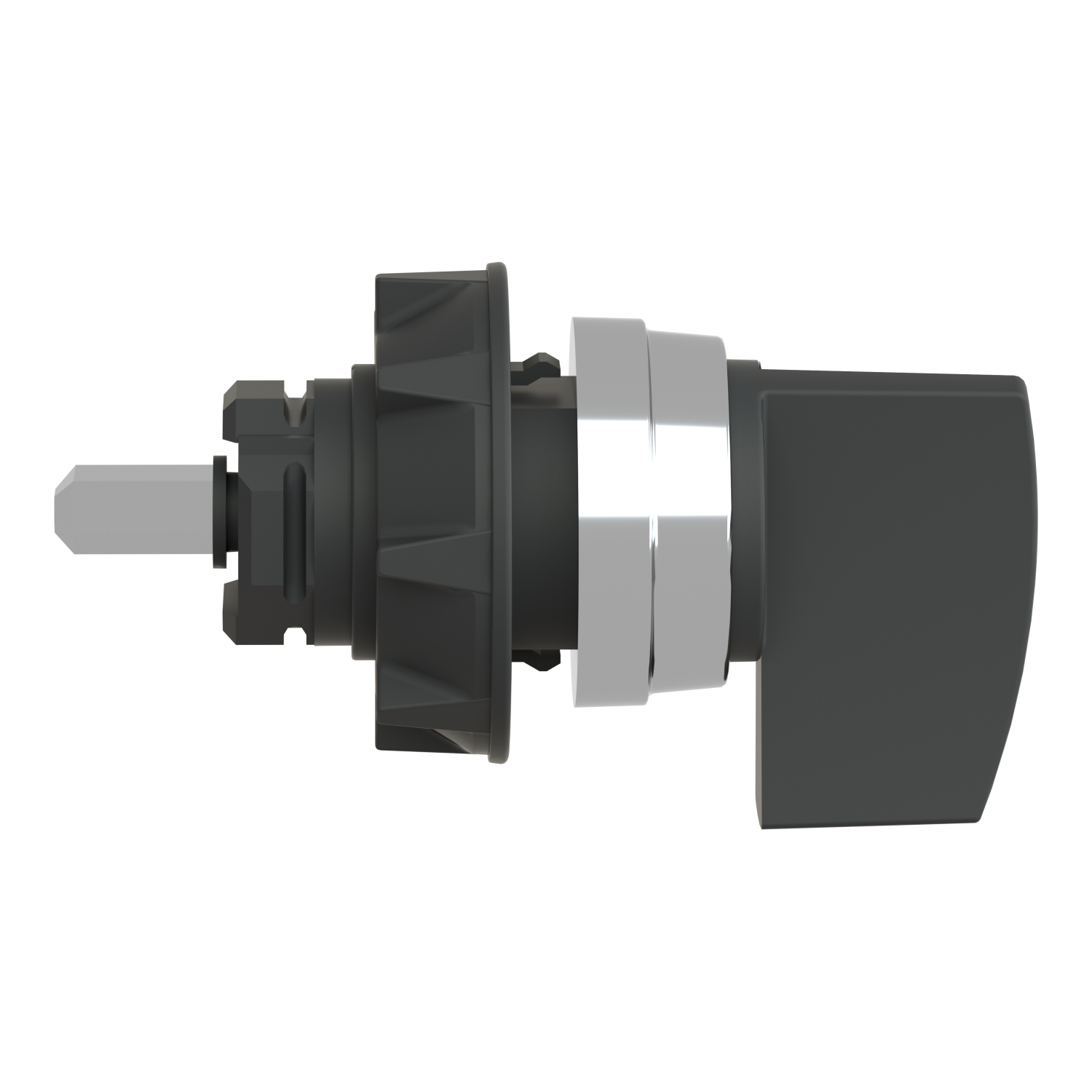

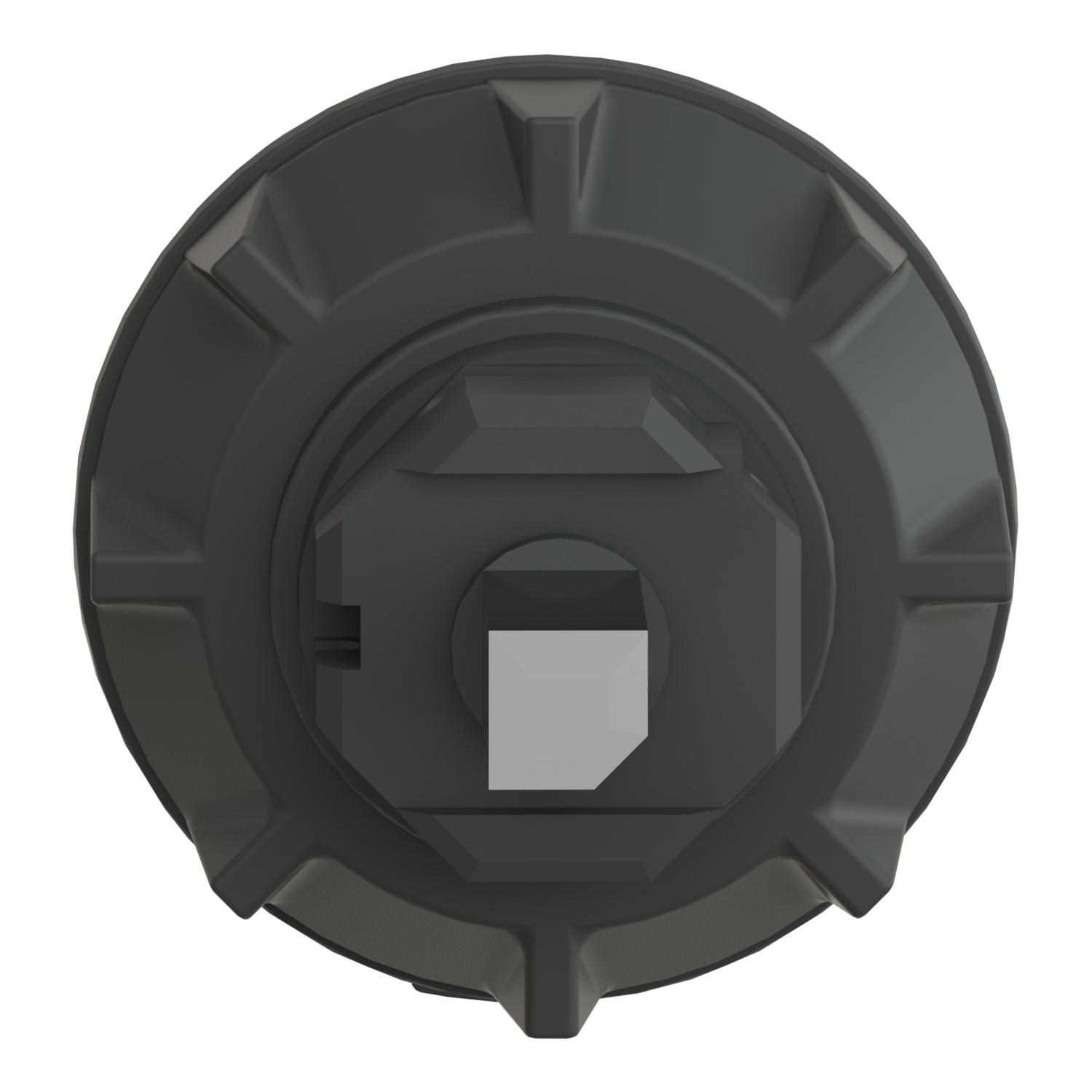

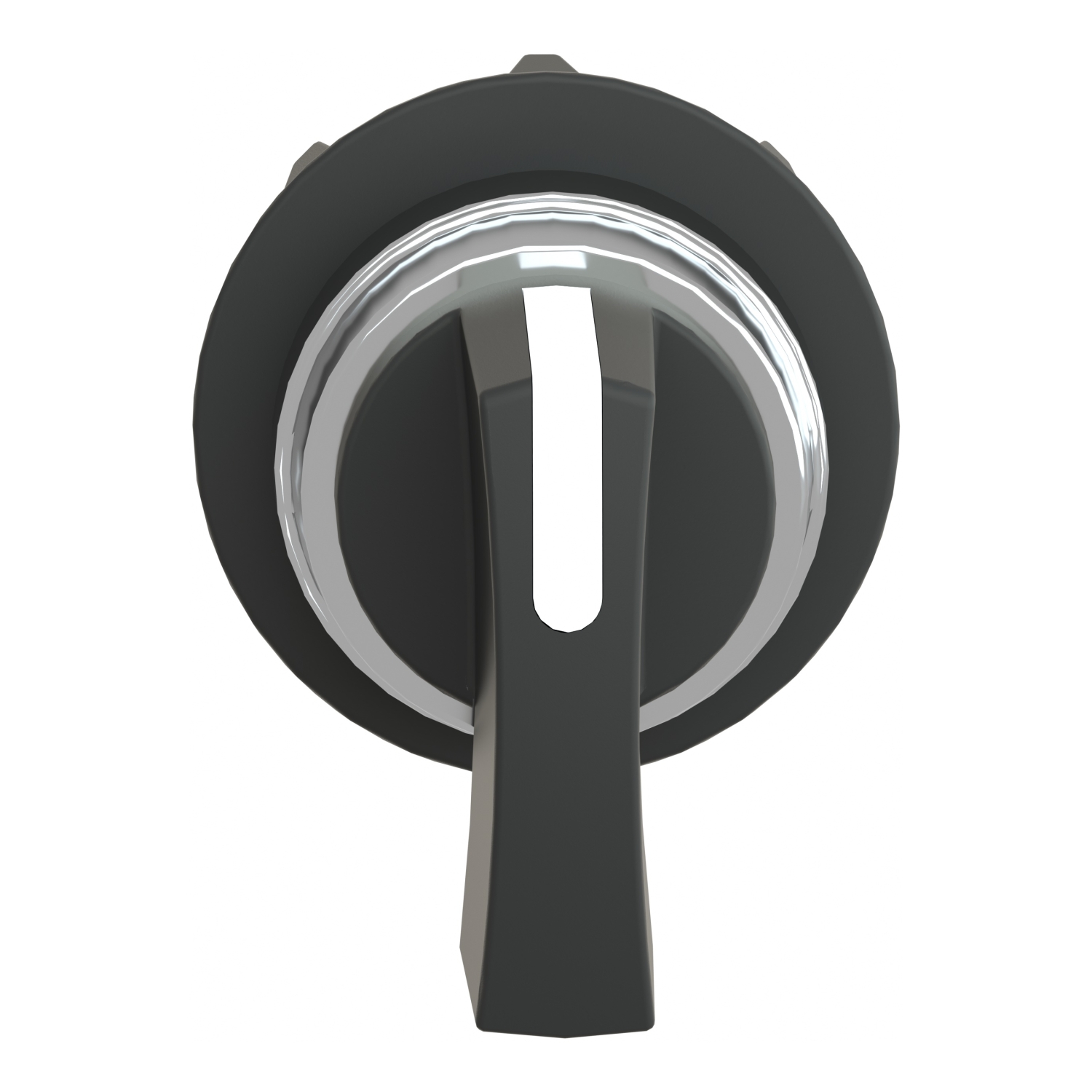

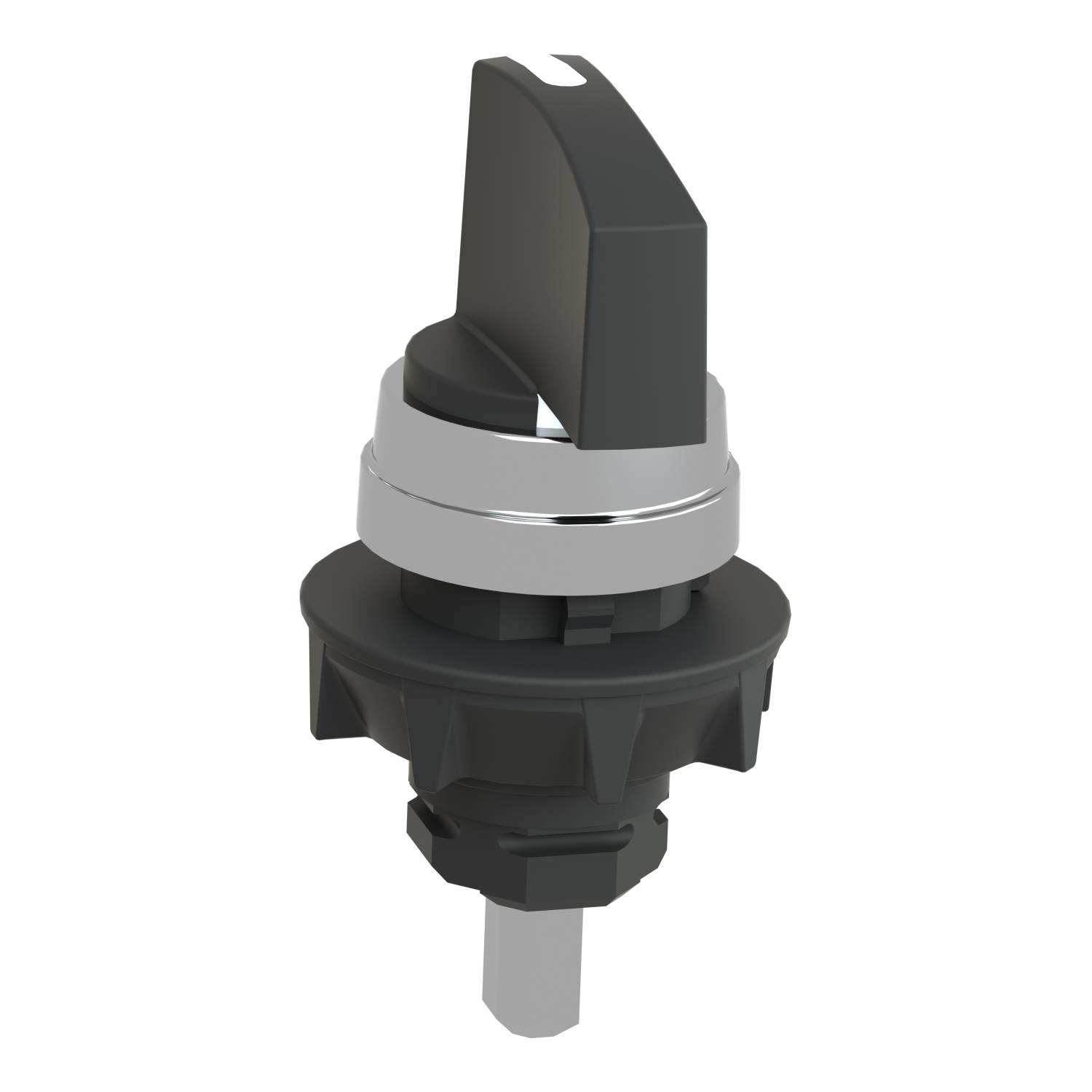

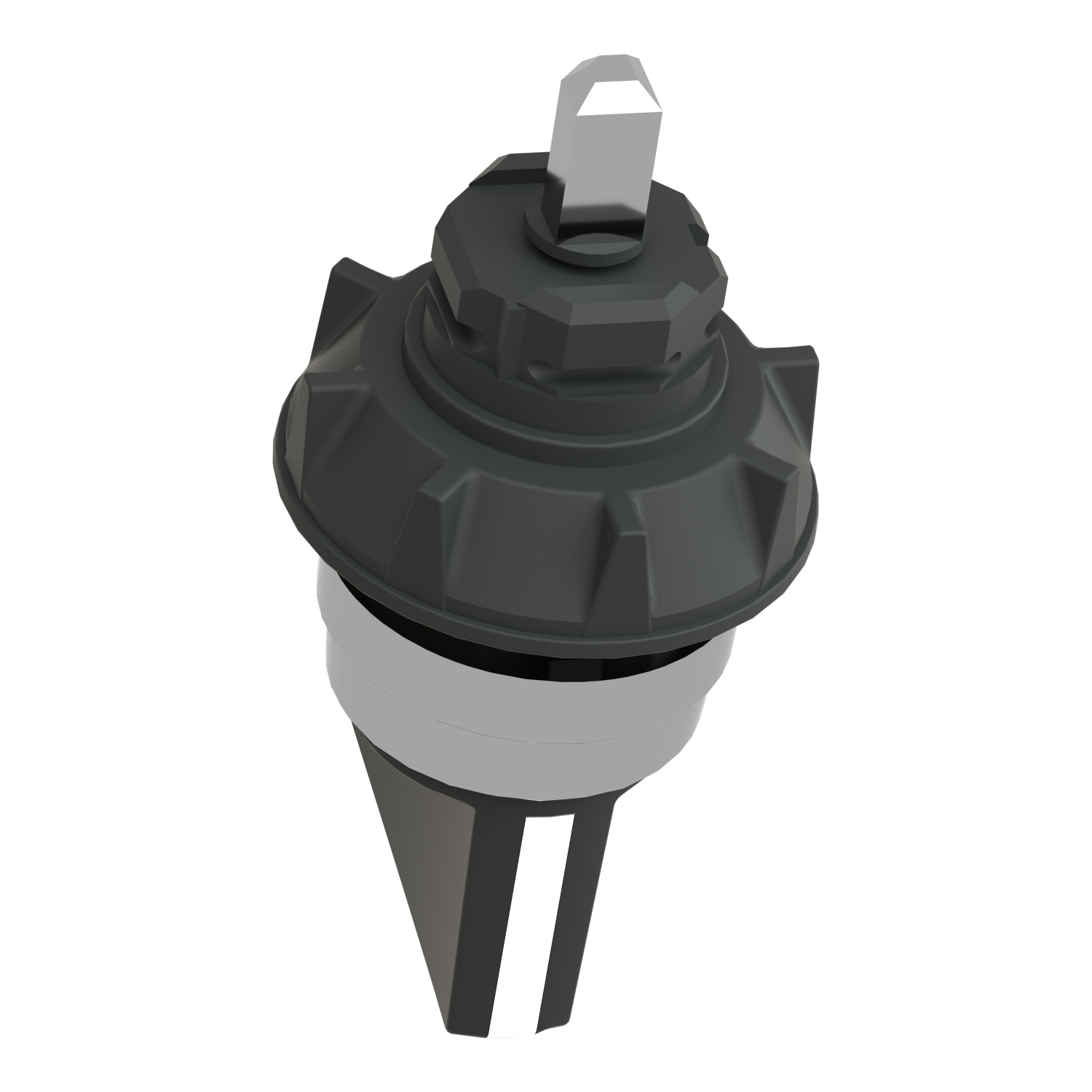

Cap De Actionare Cu Rama - Ø 29 Mm, Finisaj Plastic Cu Metal - Maner Negru
Documente
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | No |
| Colour | |
| Colour front ring | Black |
| Colour control element | Black |
| Colour indicator light cap | - |
| Model/type | |
| Type of control element | Wing knob |
| Construction type lens | Round |
| With front ring | Yes |
| Setting/control | |
| Number of switch positions | 0 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | - |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 183,15 cm3 |
| weight | 48 g |
| length | 9 cm |
| width | 5,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110980738 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,22 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43389110980736 |
