Descriere

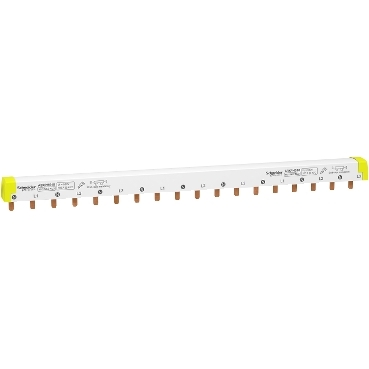

Pieptene, 3L+N Echilibrat, Inclinare 18 mm, 18 Module, 100 A
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 324 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 18 |
| Module width | 18 mm |
| Options | |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Pin |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | - |
| Rated permanent current Iu | 100 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 4 |
| Max. rated operation voltage Ue | 415 V |
| Rated short-time withstand current lcw | - |
| Application | |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 9 |
| Package 1 | |
| volume | 211,86 cm3 |
| weight | 198 g |
| length | 32,1 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480485091 |
| Package 2 | |
| volume | 1795,68 cm3 |
| weight | 1,064 kg |
| length | 34,8 cm |
| width | 8,6 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480485098 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 6,847 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 53606480485096 |
