Descriere

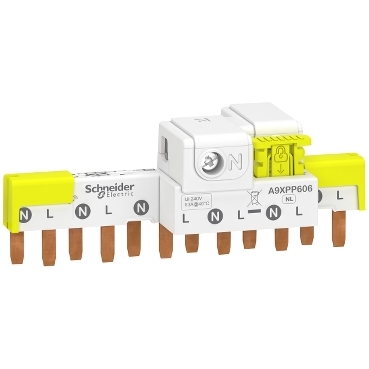

Acti9 iC40 Pieptene cu conectori 1P+N 6m 18mm
Documente
Specificatii
| Measurements | |
| Length | 108 mm |
| Cross section | - |
| Width in number of modular spacings | 6 |
| Module width | 9 mm |
| Colour | |
| Colour | White |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 63 A |
| Number of poles | 2 |
| Max. rated operation voltage Ue | 230 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 6 |
| Package 1 | |
| volume | 319,6 cm3 |
| weight | 75 g |
| length | 17 cm |
| width | 4,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489598853 |
| Package 2 | |
| volume | 13605,9 cm3 |
| weight | 1,89 kg |
| length | 62,7 cm |
| width | 35 cm |
| qmax | 18 |
| qmin | 18 |
| um | BX |
| gtin | 13606489598850 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 30,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 162 |
| qmin | 162 |
| um | PF |
| gtin | 23606489598857 |
