Descriere

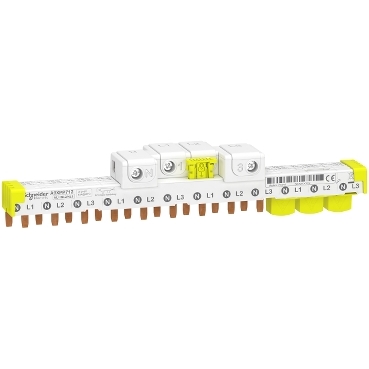

Acti9 iC40 Pieptene cu conectori 3P+N 12m 18mm
Documente
Specificatii
| Measurements | |
| Length | 216 mm |
| Cross section | - |
| Width in number of modular spacings | 12 |
| Module width | 9 mm |
| Colour | |
| Colour | White |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 63 A |
| Number of poles | 4 |
| Max. rated operation voltage Ue | 400 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 3 |
| Package 1 | |
| volume | 526,5 cm3 |
| weight | 213 g |
| length | 26 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489598884 |
| Package 2 | |
| volume | 14015,625 cm3 |
| weight | 3,078 kg |
| length | 62,5 cm |
| width | 34,5 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606489598881 |
| Package 3 | |
| volume | 369600 cm3 |
| weight | 37,406 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 108 |
| qmin | 108 |
| um | PF |
| gtin | 23606489598888 |
