Descriere

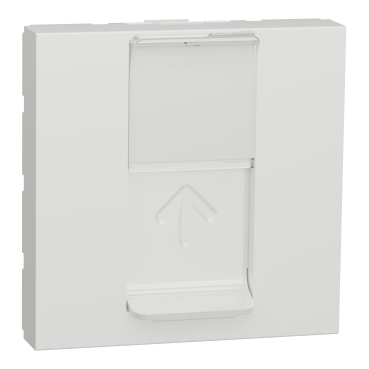

Noua Unica, RJ45 Cover for Keystone/Systimax, 2modul, alb
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | Yes |
| With strain relief | Yes |
| With lighting | No |
| Number of modules (module system) | 2 |
| With dust cover | Yes |
| With imprint | Yes |
| Assembly arrangement | Central cover plate |
| With buses/couplings | No |
| Options | |
| Luster terminal | No |
| Support ring | No |
| Imprintable label | Without indication field |
| Shielded buses | No |
| Shielded housing | No |
| Anti-bacterial treatment | No |
| Protection | |
| Suitable for degree of protection (IP) | IP21 |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Application | |
| Utilization | Mounting cover data connector |
| Measurements | |
| Device depth | 27 mm |
| Min. depth of built-in installation box | 40 mm |
| Device width | 45 mm |
| Device height | 45 mm |
| Mounting/installation | |
| Type of fastening | Engage (snap) |
| Mounting method | Flush-mounted |
| Other | |
| Outlet direction | Straight |
| Impact strength | IK04 |
| Connection | |
| Suitable for number of connectors | 1 |
| Package 1 | |
| volume | 50,625 cm3 |
| weight | 12 g |
| length | 4,5 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489458928 |
| Package 2 | |
| volume | 3006,25 cm3 |
| weight | 310 g |
| length | 18,5 cm |
| width | 13 cm |
| qmax | 20 |
| qmin | 20 |
| um | BX |
| gtin | 13606489458925 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 6,348 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 360 |
| qmin | 360 |
| um | CT |
| gtin | 43606489458926 |
