Descriere

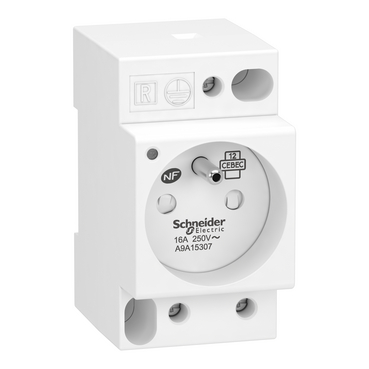

din priza iPC, 2P+E, 16A, 250VAC, NFC15100, lumina semnalizare Stab. cu presiune tensiune
Documente
Specificatii
| Model/type | |
| With hinged lid | No |
| Model | Other |
| With enhanced contact protection | Yes |
| Number of socket outlets | - |
| Protective earth pin round | - |
| With control lamp | Yes |
| Electrical | |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Voltage type | AC |
| Measurements | |
| Built-in depth | 63 mm |
| Width in number of modular spacings | 2.5 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Number of active contacts (flat) | - |
| Number of active contacts (round) | - |
| Package 1 | |
| volume | 267,75 cm3 |
| weight | 104 g |
| length | 8,5 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480097775 |
| Package 2 | |
| volume | 1555,2 cm3 |
| weight | 570 g |
| length | 24 cm |
| width | 7,2 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480097772 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 9,037 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 75 |
| qmin | 75 |
| um | CT |
| gtin | 43606480097773 |
