Descriere

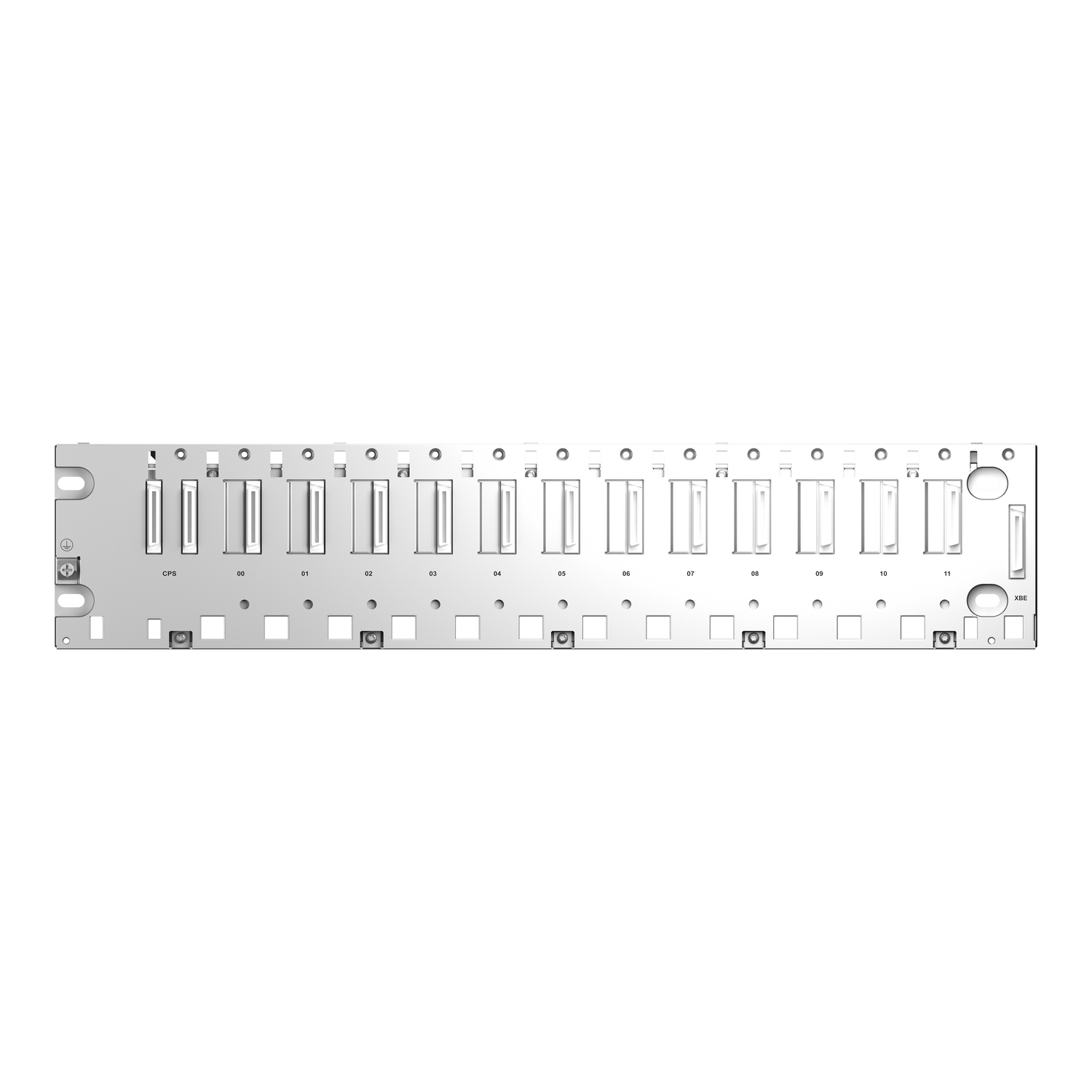

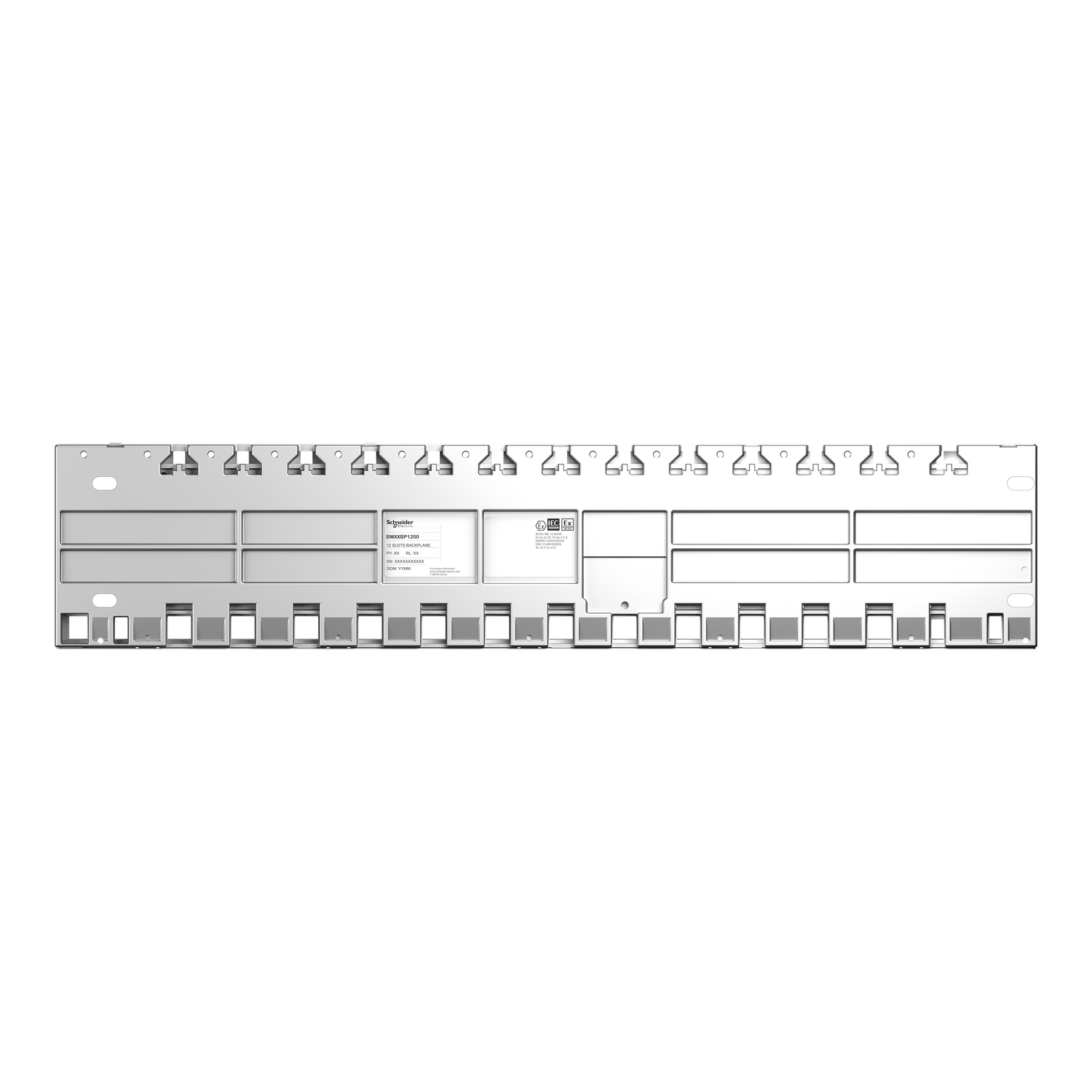

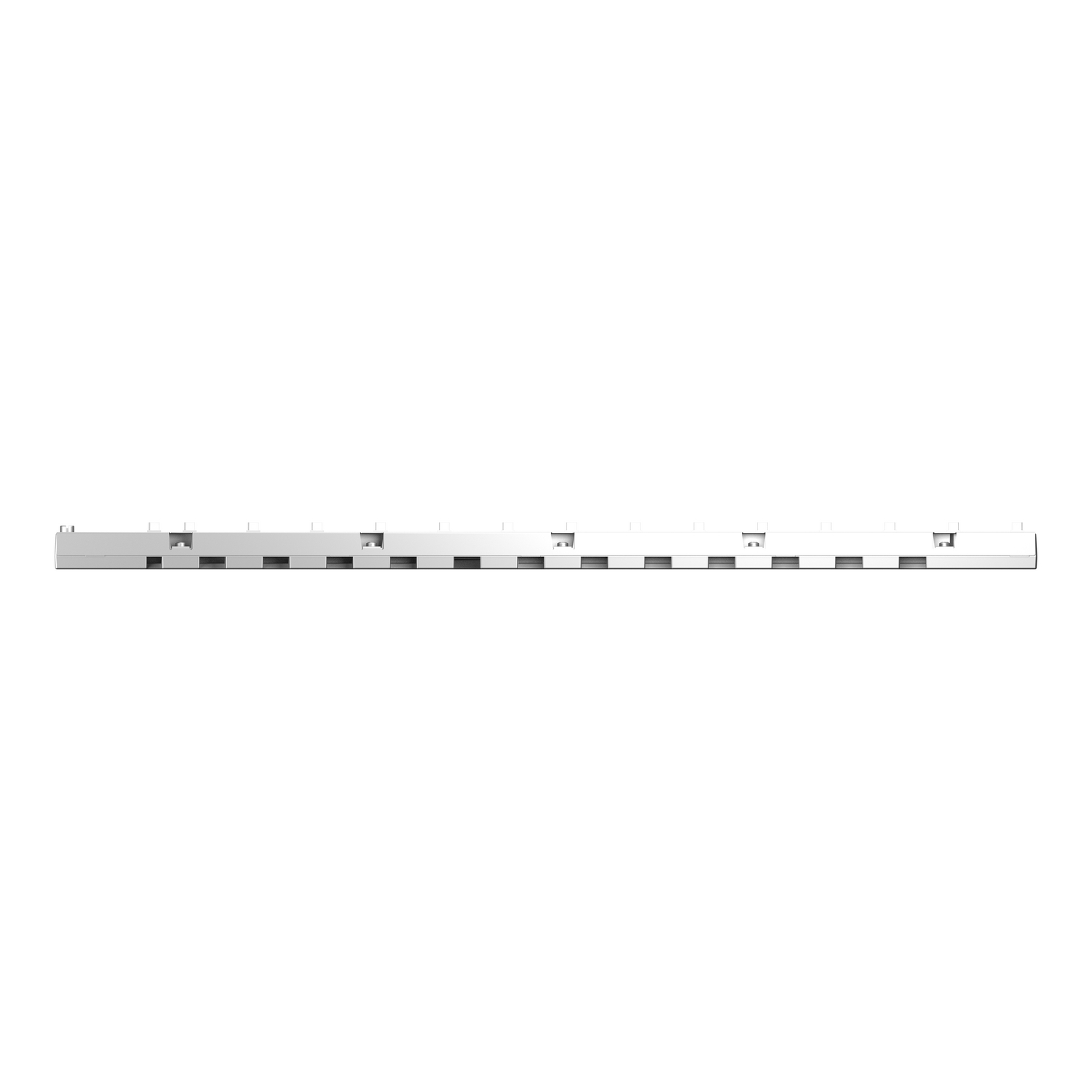

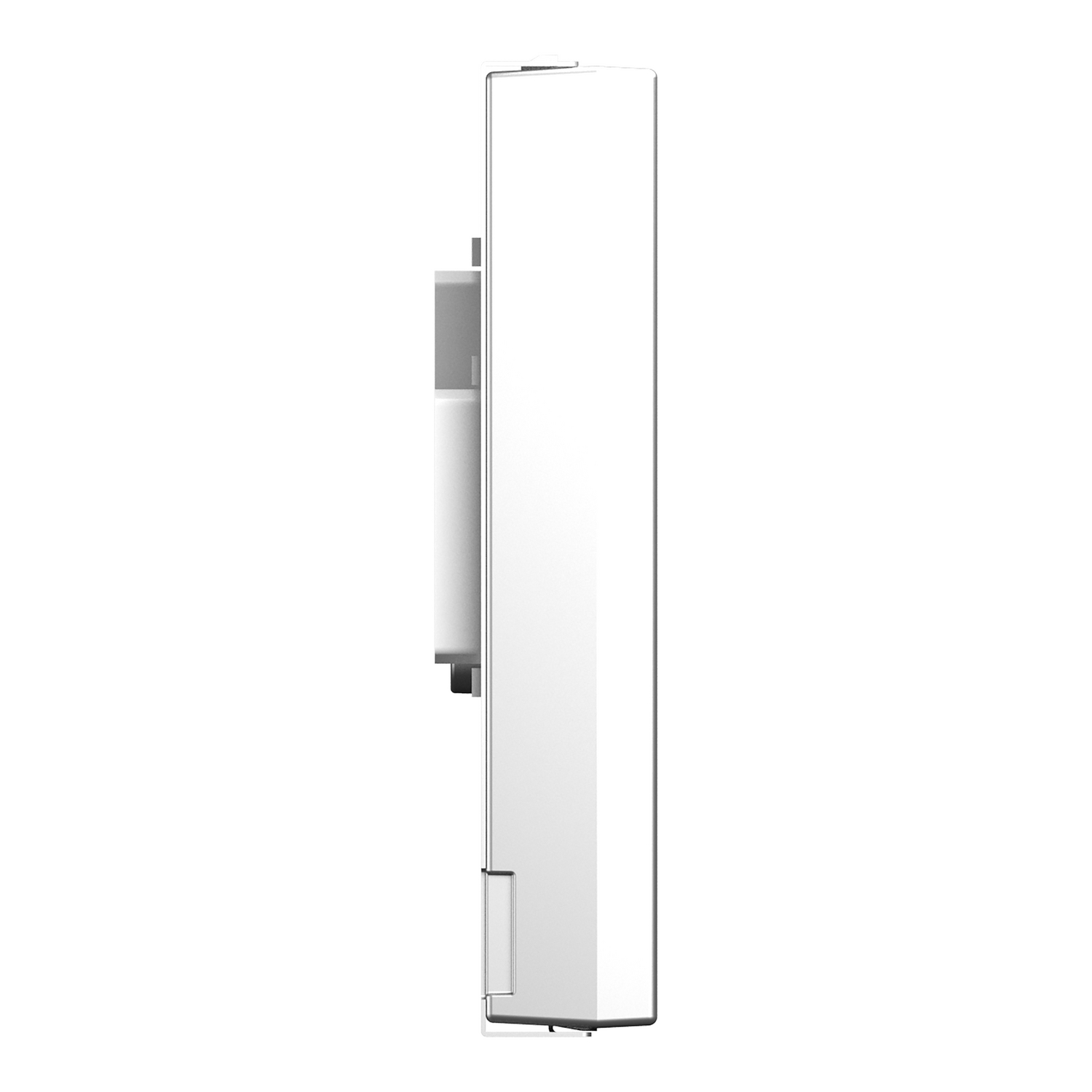

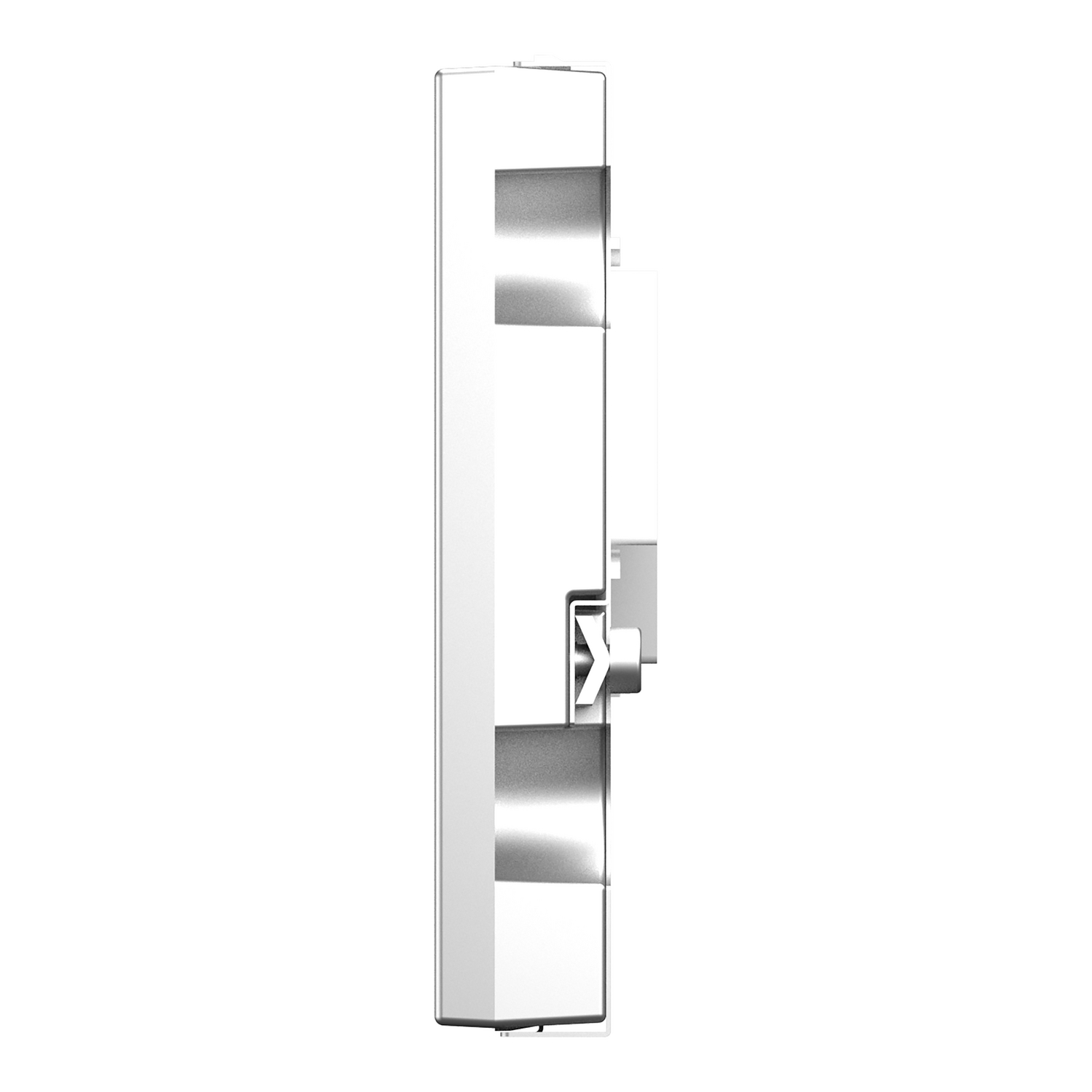

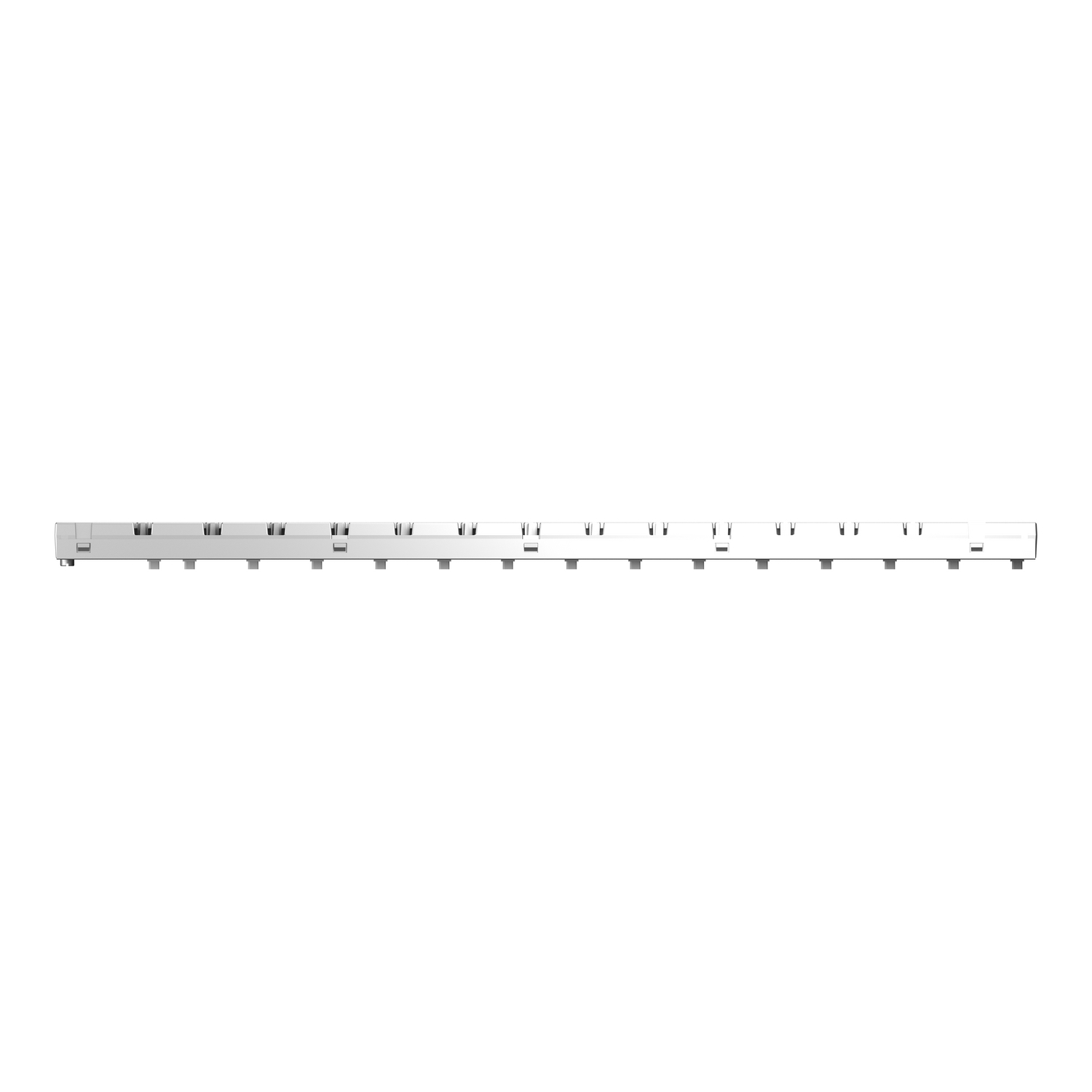

Rack M340 - 12 Sloturi - Montaj Pe Panou, Contrapanou Sau Sina Din
Documente
Specificatii
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Electrical | |
| Output voltage AC 50 Hz | - |
| Type of voltage (input voltage) | - |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Type of output voltage | - |
| Max. output current DC | - |
| With integrated power supply | Yes |
| Input voltage AC 50 Hz | - |
| Input voltage AC 60 Hz | - |
| Max. input current AC 60 Hz | - |
| Input voltage DC | - |
| Max. input current DC | - |
| Output voltage AC 60 Hz | - |
| Output voltage DC | - |
| Max. input current AC 50 Hz | - |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Mounting/installation | |
| Front built-in possible | Yes |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | Yes |
| Connection | |
| Number of slots | 12 |
| Measurements | |
| Height | 103.7 mm |
| Width | 503.2 mm |
| Depth | 19 mm |
| Options | |
| Redundancy | No |
| Rack-assembly possible | Yes |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | Other |
| Explosion safety category for gas | Other |
| Package 1 | |
| volume | 6361,6 cm3 |
| weight | 1,317 kg |
| length | 56,8 cm |
| width | 16 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595863909029 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 11,42 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 23595863909023 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 52,68 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 32 |
| qmin | 32 |
| um | PF |
