Descriere

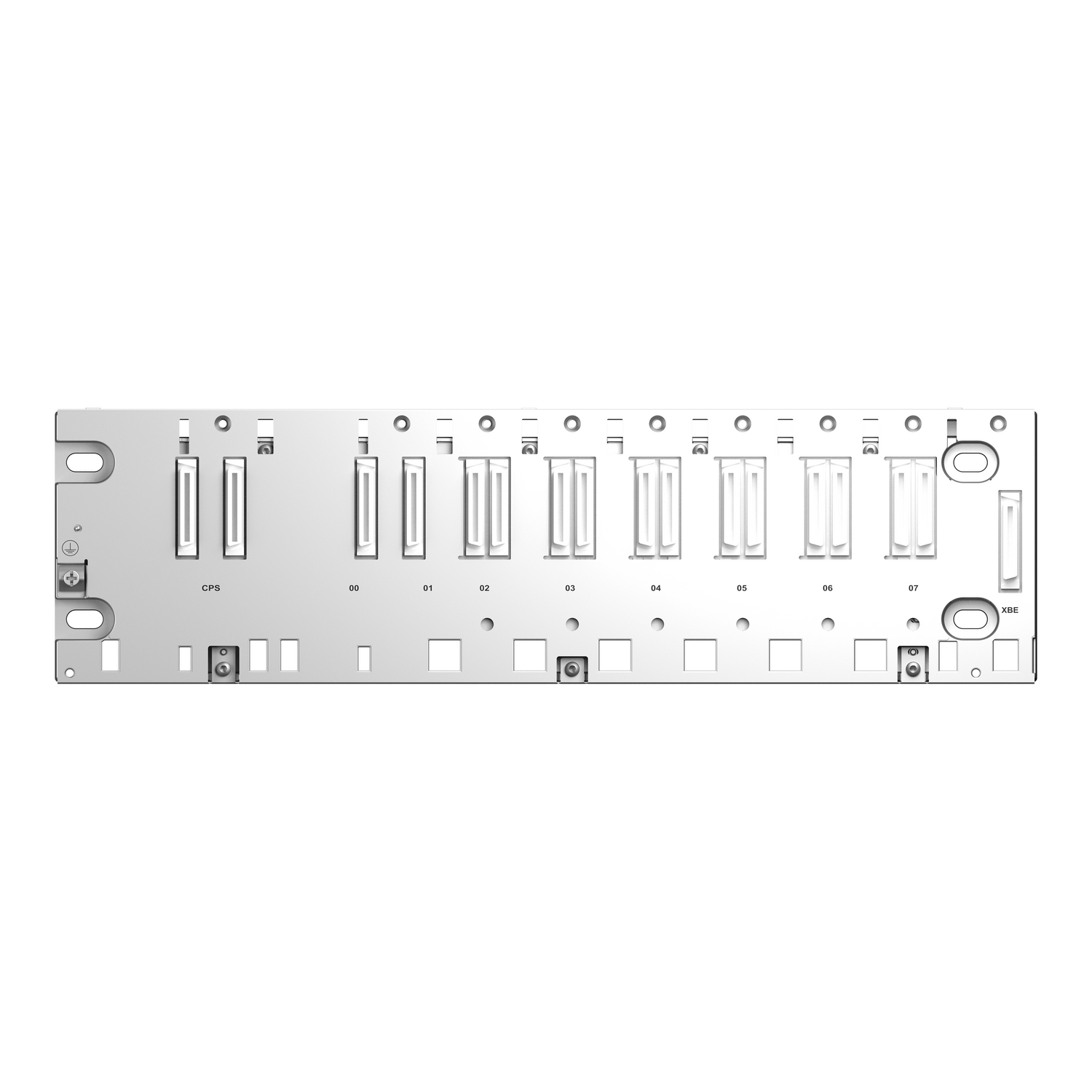

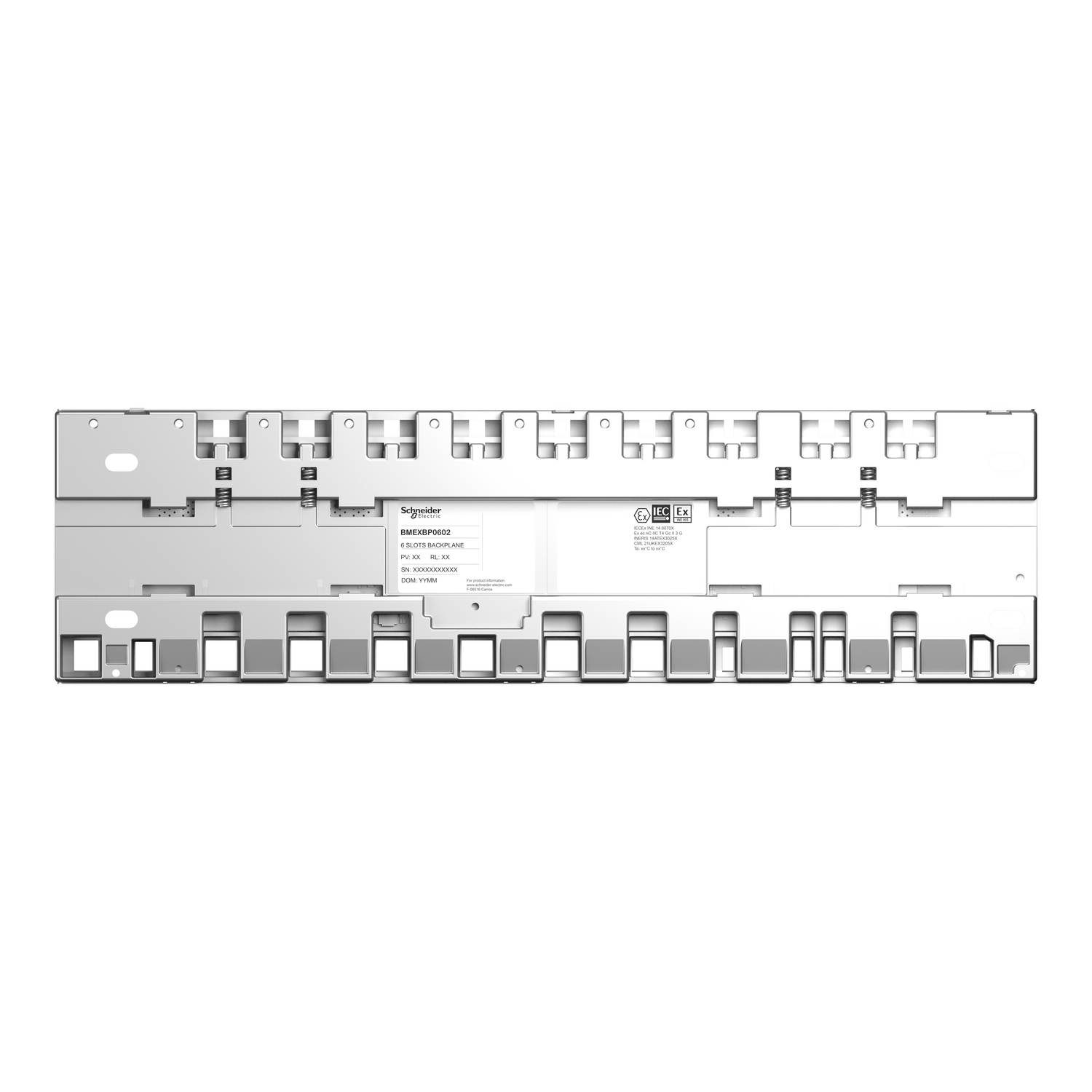

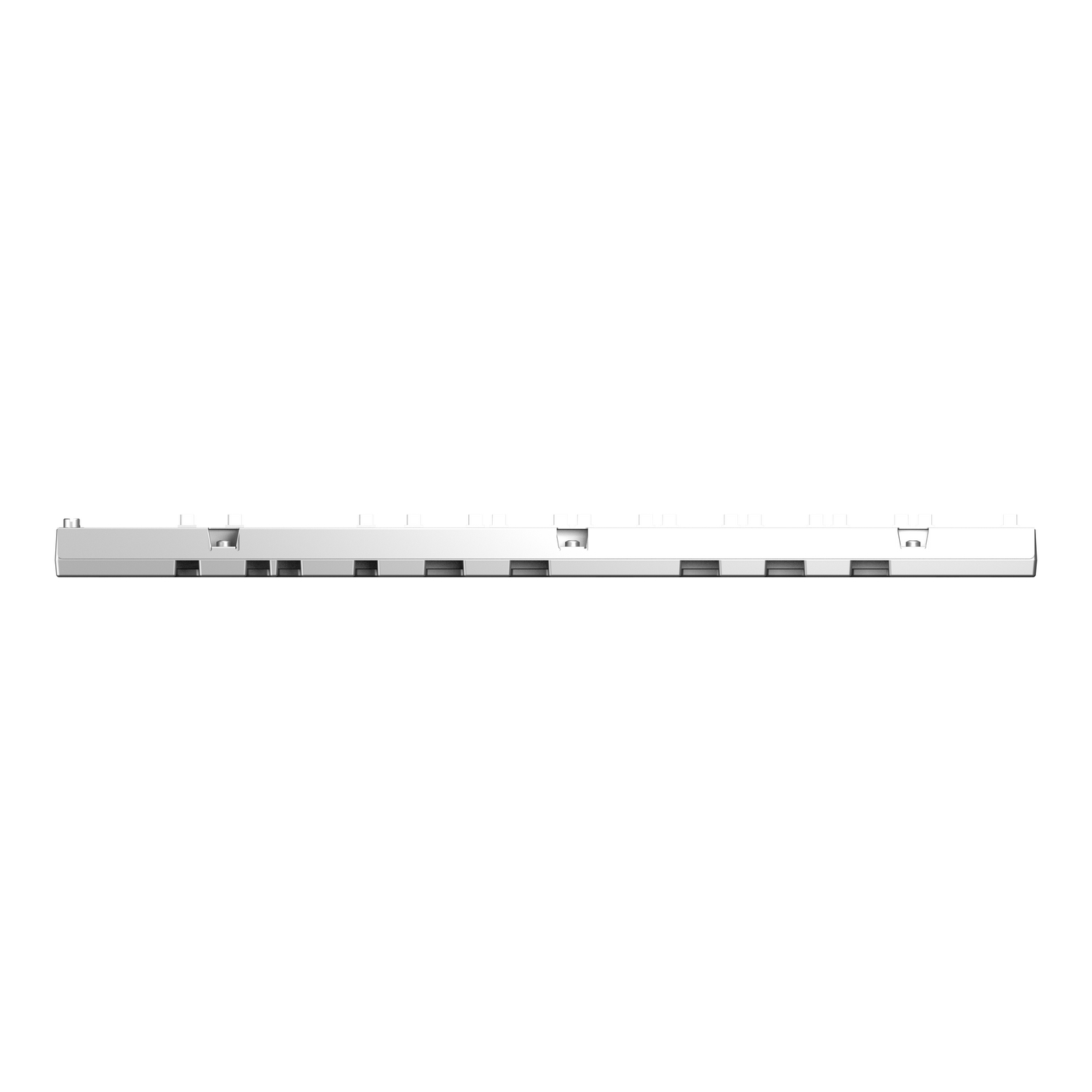

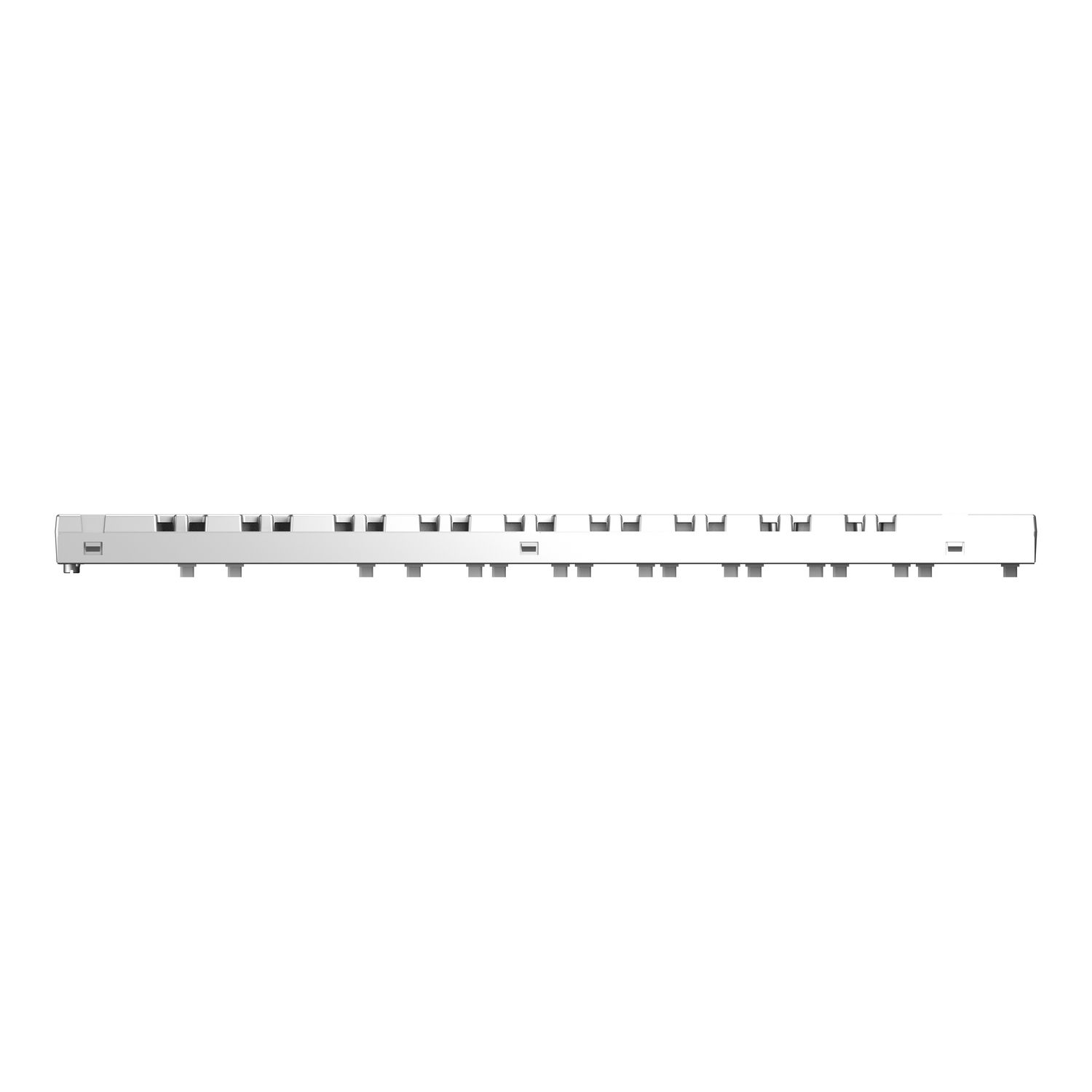

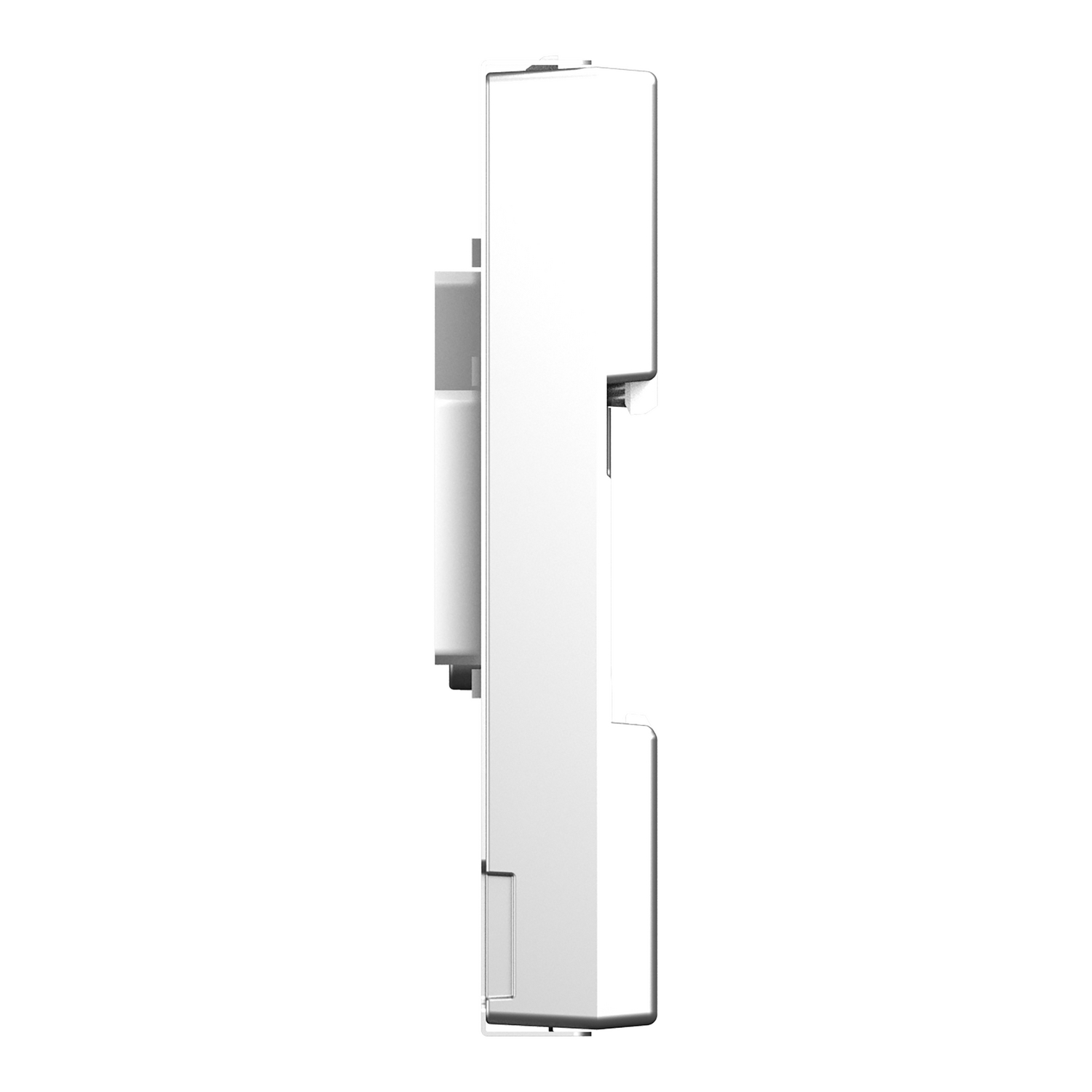

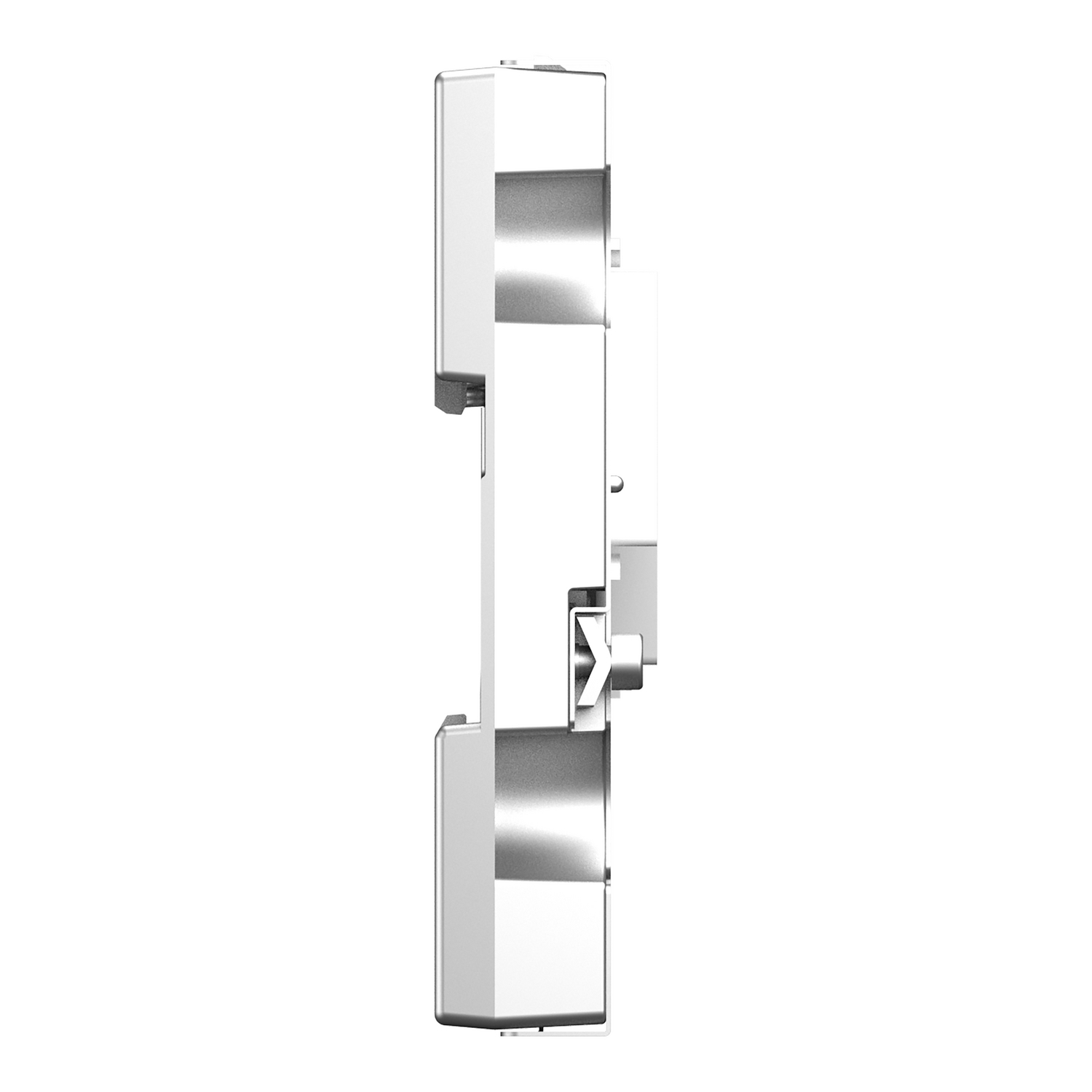

Rack 6 pozitii ETH & BUS-X alim rosu compat.cu alim redundanta & alim stand.
Documente
Specificatii
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Electrical | |
| Output voltage AC 50 Hz | - |
| Type of voltage (input voltage) | AC/DC |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Type of output voltage | - |
| With integrated power supply | Yes |
| Input voltage AC 50 Hz | - |
| Input voltage AC 60 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | 164 A |
| Input voltage DC | 3.3 V |
| Output voltage AC 60 Hz | - |
| Output voltage DC | - |
| Max. input current AC 50 Hz | - |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Mounting/installation | |
| Front built-in possible | Yes |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
| Connection | |
| Number of slots | 6 |
| Measurements | |
| Height | 105.11 mm |
| Width | 376 mm |
| Depth | 19 mm |
| Application | |
| Suitable for safety functions | No |
| Options | |
| Redundancy | Yes |
| Rack-assembly possible | Yes |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 4643,904 cm3 |
| weight | 1,007 kg |
| length | 45,6 cm |
| width | 15,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480911743 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 10,01 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 9 |
| qmin | 9 |
| um | CT |
| gtin | 23606480911747 |
