Descriere

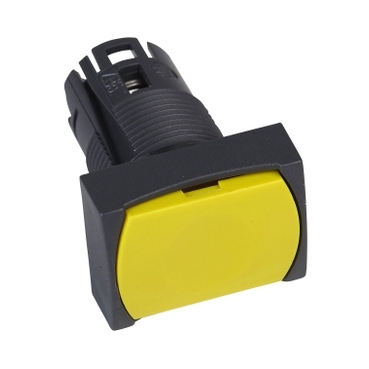

Cap Dreptunghiular pentru Buton Ø 16, Incastrat, Galben
Documente
Specificatii
| Options | |
| Labelled | No |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Black |
| Colour button | Yellow |
| Model/type | |
| With protective cover | No |
| Type of button | Flat |
| Construction type lens | Rectangular |
| With front ring | Yes |
| Number of command positions | 1 |
| Measurements | |
| Width opening | - |
| Hole diameter | 16.2 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA), front side | Other |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 28 cm3 |
| weight | 9 g |
| length | 4 cm |
| width | 3,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110775525 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 765 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43389110775523 |
