Descriere

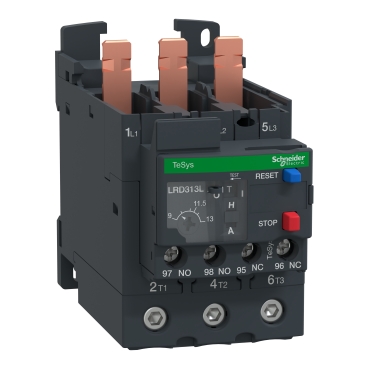

Releu Suprasarcina Termica Motor Tesys - 9 - 13 A - Clasa 20A
Documente
Specificatii
| Options | |
| Reset function automatic | Yes |
| Reset function input | No |
| Reset function push-button | Yes |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Max. rated operation voltage Ue | 690 V |
| Adjustable current range | 9 A |
| Other | |
| Release class | Class 20 |
| Mounting/installation | |
| Mounting method | Direct attachment/single positioning |
| Package 1 | |
| volume | 929,592 cm3 |
| weight | 0,41 kg |
| length | 13,72 cm |
| width | 10,67 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119215527 |
