Descriere

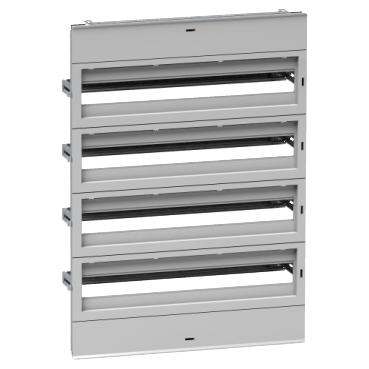

Sasiu distributie modul. 112 module pt NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| With mounting plate | No |
| Measurements | |
| Width | 560 mm |
| Height | 780 mm |
| Number of modular spacings per DIN-rail | 28 |
| Depth | - |
| Model/type | |
| Type of covering | With notch |
| With N-PE clamp | Yes |
| With cover | Yes |
| Number of DIN-rails | 4 |
| Options | |
| Termination point meter location | - |
| Package 1 | |
| volume | 69517,5 cm3 |
| weight | 8,118 kg |
| length | 78 cm |
| width | 57,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480773808 |
| Package 2 | |
| volume | 1488000 cm3 |
| weight | 142 kg |
| length | 120 cm |
| width | 100 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
