Descriere

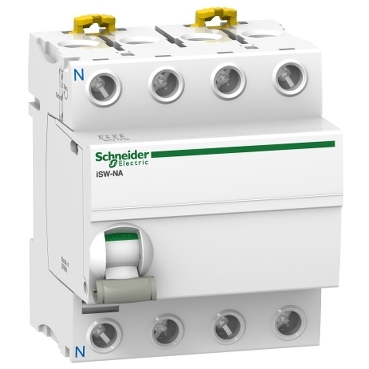

Acti9 iSW-NA este un separator de sarcina modular si fiabil. este un 4P, curentul nominal este de 40 A, iar tensiunea de functionare este de 400 V c.a. la 415 V c.a.. Rezistenta electrica creste cu pana la 10000 de cicluri, iar rezistenta mecanica creste cu 20000 de cicluri. Temperatura de functionare este de la -35°C la +70°C. Temperatura de depozitare este de -40°C la +85°C. Gradul de protectie este IP20 si IP40 instalat in cofret. Se monteaza pe sina DIN. Latimea in module de 9 mm este de 8. Dimensiunile sunt (L) 72mm x (I) 85mm x (a) 74mm. Acest separator de sarcina este utilizat pentru control si izolare. Acest produs respecta standardul SR EN 60947-3.
Documente
Specificatii
| Electrical | |
| Rated current | 40 A |
| Rated voltage | 415 V |
| Rated switching capacity | 5 kA |
| Voltage type | AC |
| Short-circuit breaking capacity (Icw) | 20 kA |
| Number of poles | 4 |
| Min. rated voltage | 400 V |
| Max. lamp power | - |
| Measurements | |
| Built-in depth | 74.5 mm |
| Width in number of modular spacings | 4 |
| Model/type | |
| With signal lamp | No |
| Switching function | Off switch |
| Lamp type | - |
| Other | |
| Imprint/indication | None |
| Lamp socket | - |
| Colour | |
| Colour calotte | White |
| Connection | |
| Number of contacts as normally open contact | 4 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 803,25 cm3 |
| weight | 332 g |
| length | 10,5 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480098949 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9,437 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 43606480098947 |
