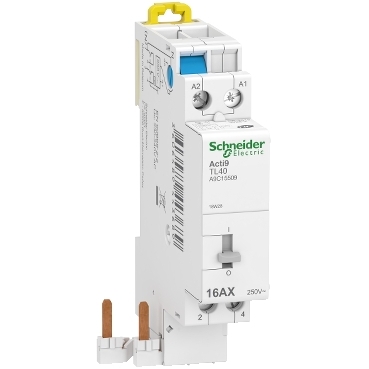

Acti9 TL40 Teleruptor 16A 2P 230V-240VAC/110V
Documente
Specificatii
| Application | |
| Suitable for manual operation | Yes |
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Rated switch current | 16 A |
| Max. load fluorescent lamp (parallel compensated) | - |
| Voltage type (supply voltage) | AC |
| Supply voltage | 250 V |
| Max. incandescent lamp load | - |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 230 V |
| Max. switching current (cos phi = 0.6) | - |
| Type of control voltage 1 | AC |
| Control voltage 2 | - |
| Measurements | |
| Built-in depth | 50 mm |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Mechanical switch |
| Package 1 | |
| volume | 239,4 cm3 |
| weight | 124 g |
| length | 9,5 cm |
| width | 7,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489443689 |
| Package 2 | |
| volume | 1864 cm3 |
| weight | 799 g |
| length | 23,3 cm |
| width | 10 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606489443686 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 7,656 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 54 |
| qmin | 54 |
| um | CT |
| gtin | 43606489443687 |
