Descriere

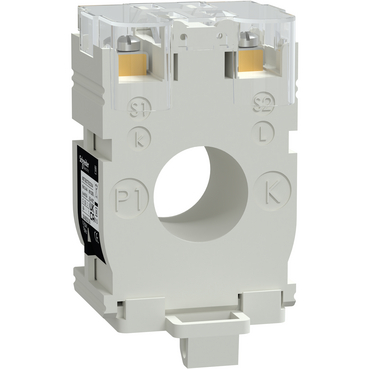

Transformator de curent tropicalizat montaj DIN 40 5 Pentru Cabluri D. 21
Documente
Specificatii
| Options | |
| Calibrated | No |
| Model/type | |
| Model | Through-feed current converter |
| With contact protection | No |
| With copper rail | No |
| Connection | |
| Number of primary inputs | 1 |
| Secondary connection | Screw connection |
| Electrical | |
| Rated primary current | 40 A |
| Overcurrent limiting factor | FS 5 |
| Rated secondary current | 5 A |
| Rated secondary apparent power | 1 VA |
| Measurements | |
| Opening diameter | 21 mm |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Other | |
| Accuracy class | 3 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 269,696 cm3 |
| weight | 187,4 g |
| length | 8,6 cm |
| width | 5,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303431123681 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,67 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 53303431123686 |
| Package 3 | |
| volume | 278400 cm3 |
| weight | 88,96 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 400 |
| qmin | 400 |
| um | PF |
