Descriere

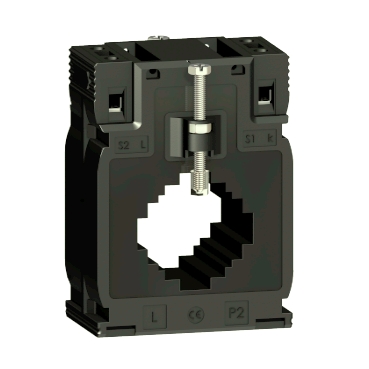

Transformator de curent tropicalizat montaj DIN 500 5 Pentru Bare Colectoare 10X
Documente
Specificatii
| Model/type | |
| Model | Through-feed current converter |
| With contact protection | No |
| With copper rail | No |
| Options | |
| Calibrated | No |
| Connection | |
| Number of primary inputs | 1 |
| Secondary connection | Screw connection |
| Electrical | |
| Rated primary current | 500 A |
| Overcurrent limiting factor | FS 5 |
| Rated secondary current | 5 A |
| Rated secondary apparent power | 12 VA |
| Measurements | |
| Opening diameter | 32 mm |
| Width opening | 41 mm |
| Height opening | 41 mm |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 724,5 cm3 |
| weight | 413 g |
| length | 11,5 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480618840 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,77 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| gtin | 53606480618845 |
