Descriere

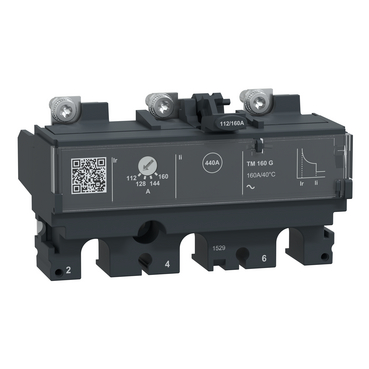

Unitate de declansare TM160G pentru intreruptoare ComPacT NSX 160/250, termomagnetice, 160 A, 3 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Thermal/magnetic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | Self powered |
| Rated control supply voltage DC | - |
| End value adjustment range undelayed short-circuit release | 440 A |
| Overload release current setting | 112 A |
| Rated permanent current Iu | 160 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 440 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 1920 cm3 |
| weight | 490 g |
| length | 12 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482000551 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 16,1 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 32 |
| qmin | 32 |
| um | CT |
| gtin | 43606482000559 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 140,8 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 256 |
| qmin | 256 |
| um | PF |
