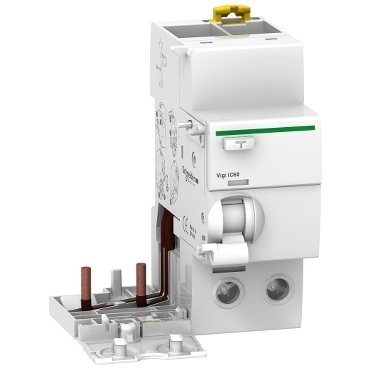

Vigi Ic60, Bloc Suplimentar Protectie Diferentiala, 2P, 63A, 1000mA, Tip C.A
Documente
Specificatii
| Electrical | |
| Nominal voltage | 230 V |
| Nominal current | 63 A |
| Rated insulation voltage Ui | 500 V |
| Surge current capacity | 3 kA |
| Rated fault current | 1 A |
| Number of poles | 2 |
| Rated impulse withstand voltage Uimp | 6 kV |
| Leakage current type | AC |
| Other | |
| Max. delay time | 130 ms |
| Frequency | 50/60 Hz |
| Pollution degree | 3 |
| Setting/control | |
| Delay adjustable | No |
| Rated fault current adjustable | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -5 °C |
| Model/type | |
| With interlocking device | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Anti-nuisance tripping version | No |
| Package 1 | |
| volume | 908,28 cm3 |
| weight | 163 g |
| length | 12 cm |
| width | 8,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480087530 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,821 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 43606480087538 |
