Descriere

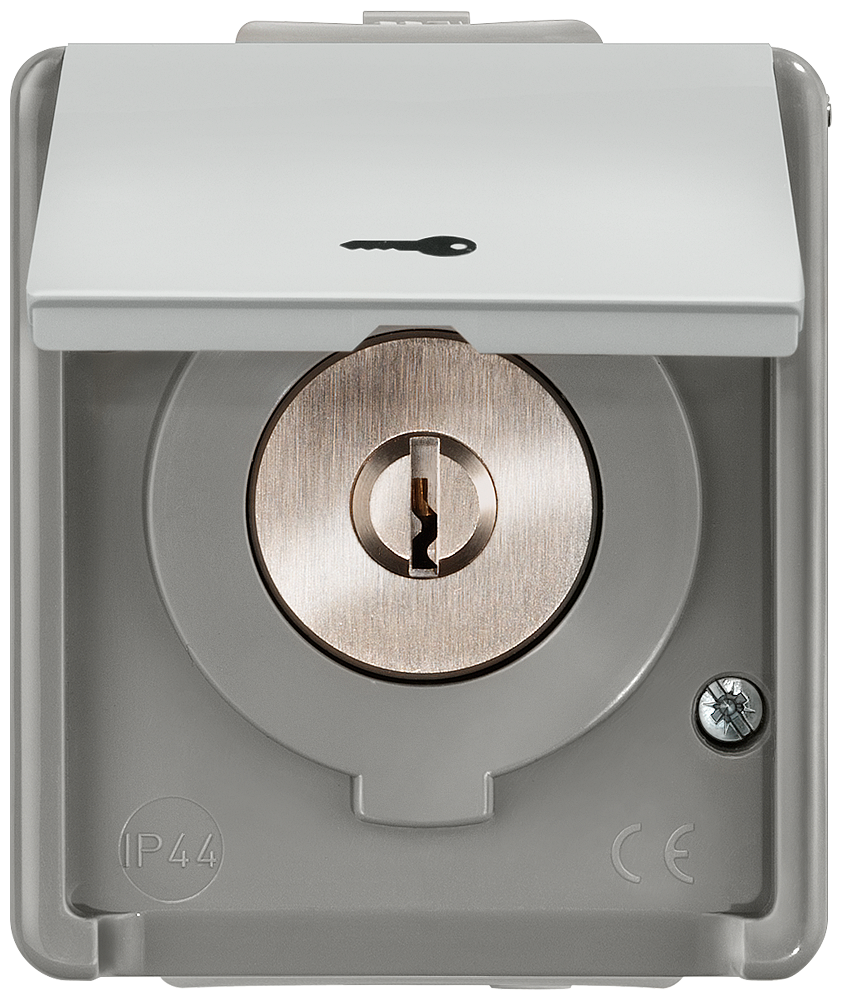

DELTA fläche IP44, AP Shutter key-operated switch 1-pole, 16A 250V, 66x 75 mm Momentary/maintained contact in both directions with 2 keys, spring flap Our DELTA IP44 surface-mounting range provides you with an attractive design, increased safety and easy operation. The DELTA IP44 surface-mounted range impresses with its breakage and impact-resistant thermoplastic enclosure. All switch and socket outlet inserts have screwless terminals for wiring. Using the insulated release levers, you can detach the conductors without tools and with touch safety. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Measurements | |
| Device height | - |
| Device width | - |
| Device diameter | - |
| Min. depth of built-in installation box | - |
| Device depth | - |
| Built-in depth | - |
| Built-in height | - |
| Built-in width | - |
| Built-in diameter | - |
| Model/type | |
| Assembly arrangement | Basic element with complete housing |
| With electrical latch | - |
| With mechanical locking | - |
| Model | 1-pole switch and push switch |
| Number of modules (module system) | - |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Type of fastening | Mounting with screw |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | Glossy |
| Connection | |
| Connection type | - |
| Electrical | |
| Nominal voltage | 250 |
| Number of poles | 1 |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Setting/control | |
| Electronic controllable | No |
| Number of buttons | 0 |
| Mechanical controllable | Yes |
| Method of operation | Key |
| Colour | |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Colour | Grey |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Options | |
| For roller blinds | - |
| For awnings | - |
| Label space/information surface | No |
| IFTTT support available | No |
| Application | |
| For venetian blinds | - |
| Package 1 | |
| weight | 0,225 |
| length | 0,09 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869038506 |
