Descriere

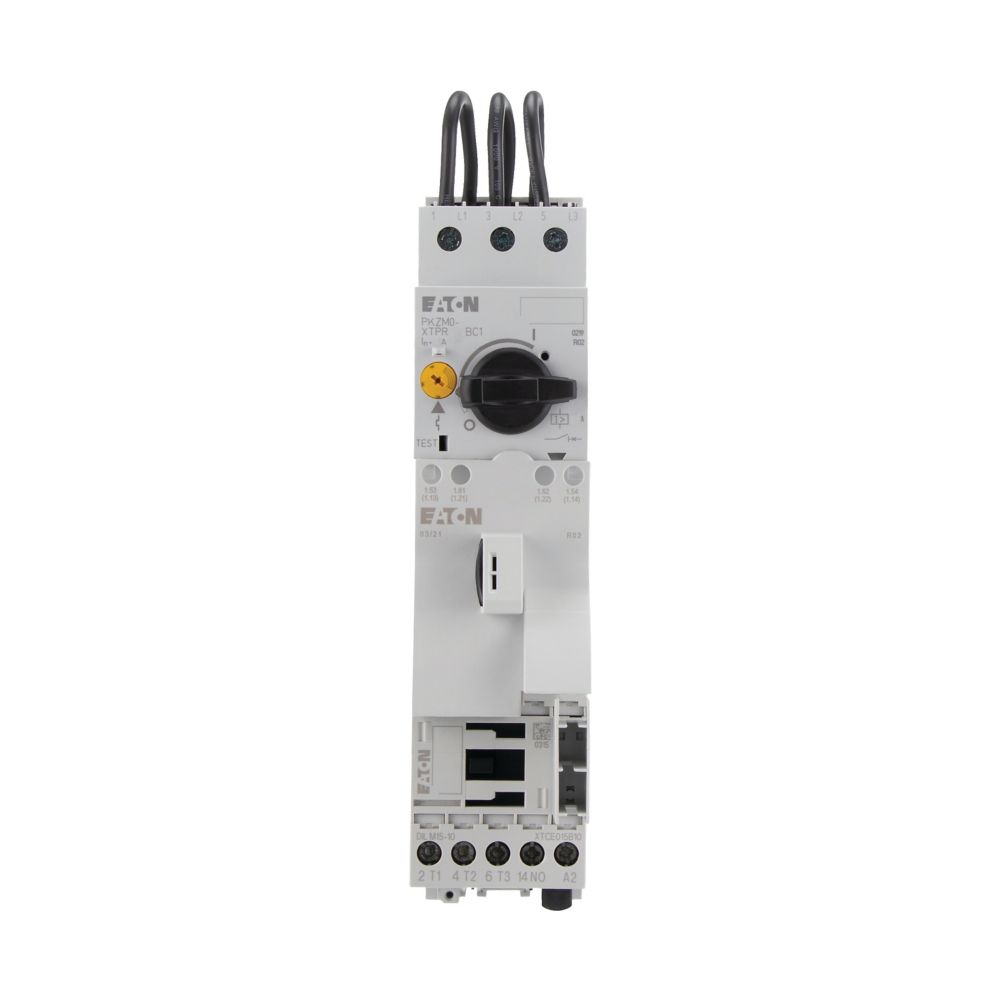

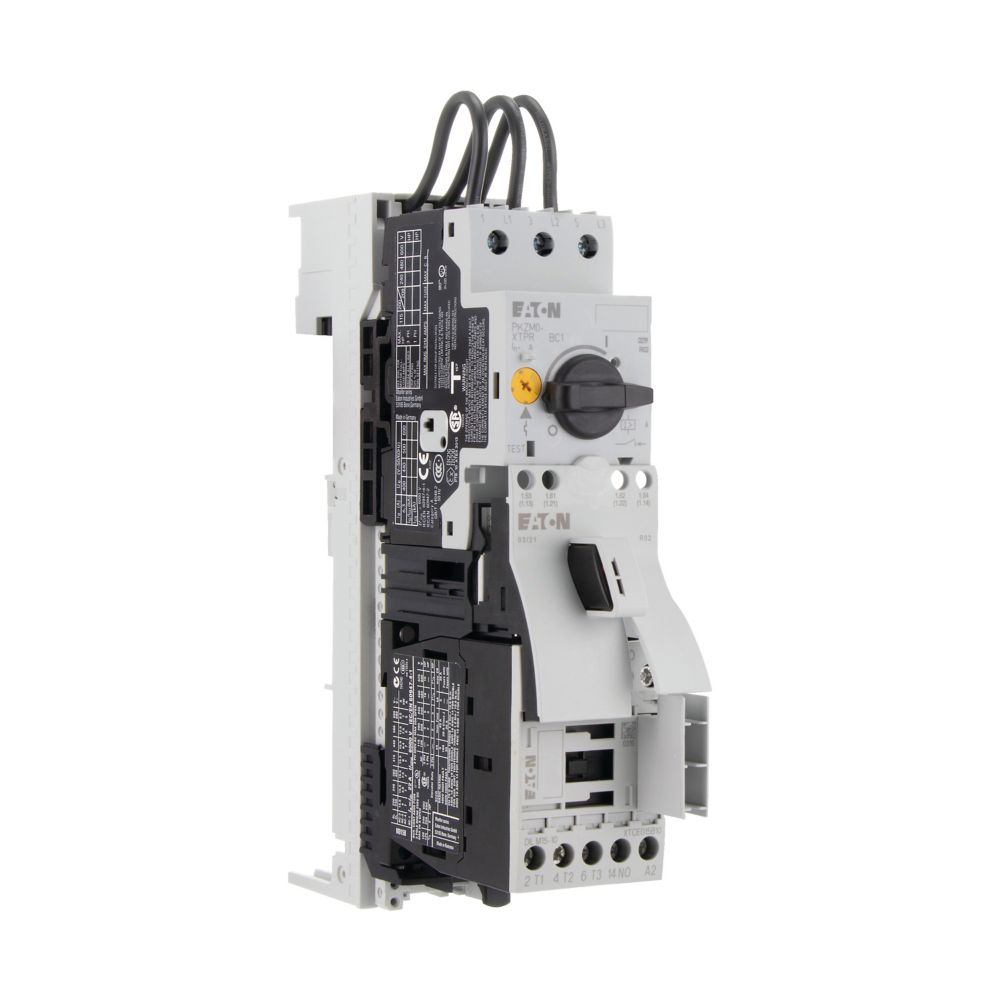

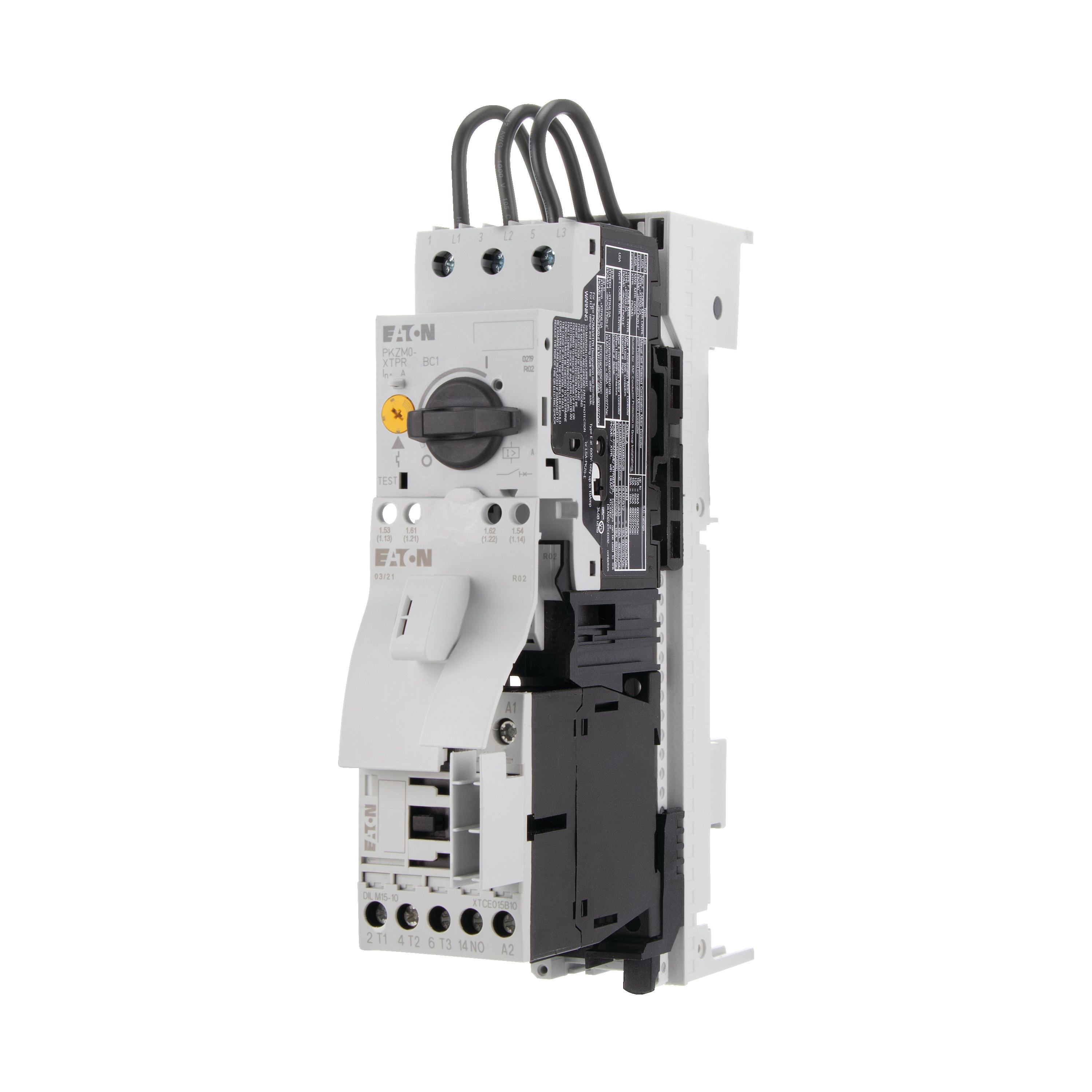

DOL starter, Basic device: MSC, Notes: Not suitable for motors with efficiency class IE3., Motor ratings Motor rating AC-3 380 V 400 V 415 V: P= 7.5 kW, Setting range of overload releases: Ir= 10 - 16 A, Coordination: Type of coordination “1”, Actuating voltage: 24 V DC, DC voltage, Standards: UL 508 (on request), CSA C 22.2 No. 14 (on request)
Specificatii
| Model/type | |
| Type of motor starter | Direct online starter (DOL) |
| With short-circuit release | Yes |
| With transformer | No |
| Number of command positions | 0 |
| Number of indicator lights | 0 |
| With fuse | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 0 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 24 |
| Voltage type for actuating | DC |
| Rated operation power at AC-3, 230 V, 3-phase | 4 |
| Rated operation power at AC-3, 400 V | 7.5 |
| Rated power, 460 V, 60 Hz, 3-phase | 0 |
| Rated power, 575 V, 60 Hz, 3-phase | 0 |
| Rated operation current Ie | 15.2 |
| Rated operation current at AC-3, 400 V | 15 |
| Overload release current setting | 10 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | 0 |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | 0 |
| Rated conditional short-circuit current, type 2, 230 V | 0 |
| Rated conditional short-circuit current, type 2, 400 V | 50 |
| Power consumption | 2.6 |
| Connection | |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Operating conditions | |
| Ambient temperature, upper operating limit | 55 |
| Options | |
| Temperature compensated overload protection | Yes |
| External reset possible | No |
| Other | |
| Release class | CLASS 10 A |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Application | |
| Suitable for emergency stop | No |
| Approval/certification | |
| Coordination class according to IEC 60947-4-3 | Class 1 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Communication | |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for ASI | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for LON | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for other bus systems | No |
| Measurements | |
| Width | 45 |
| Height | 200 |
| Depth | 154 |
