Descriere

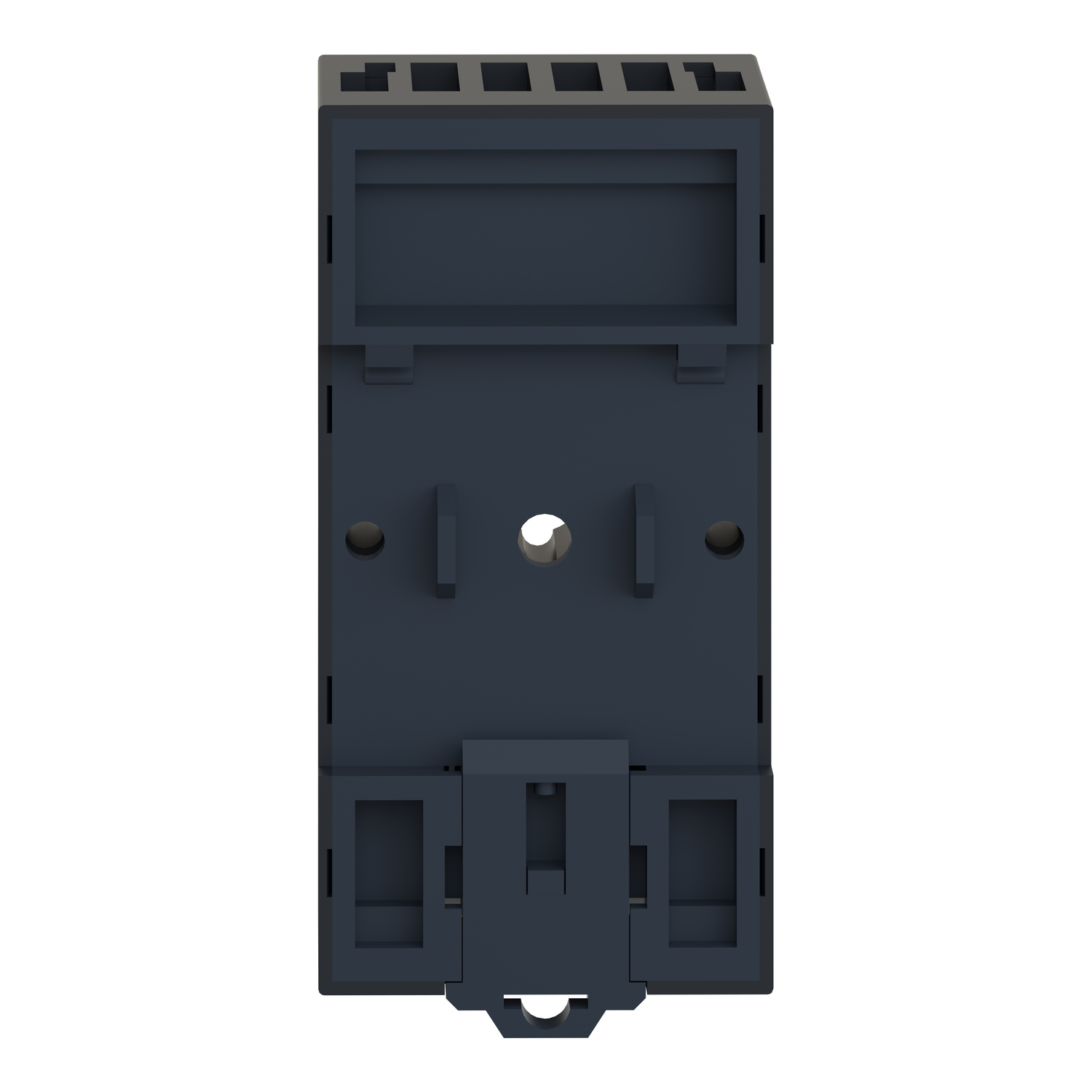

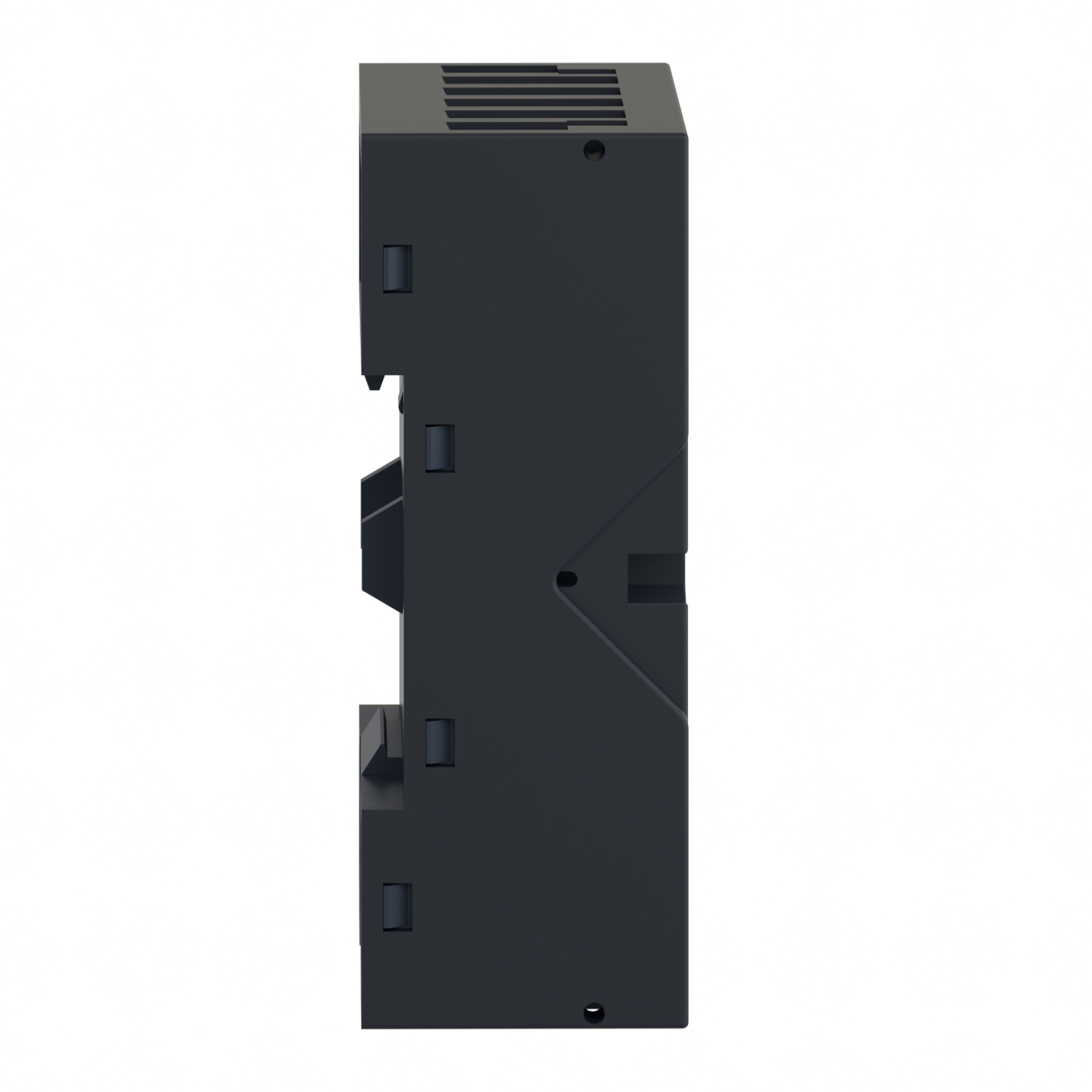

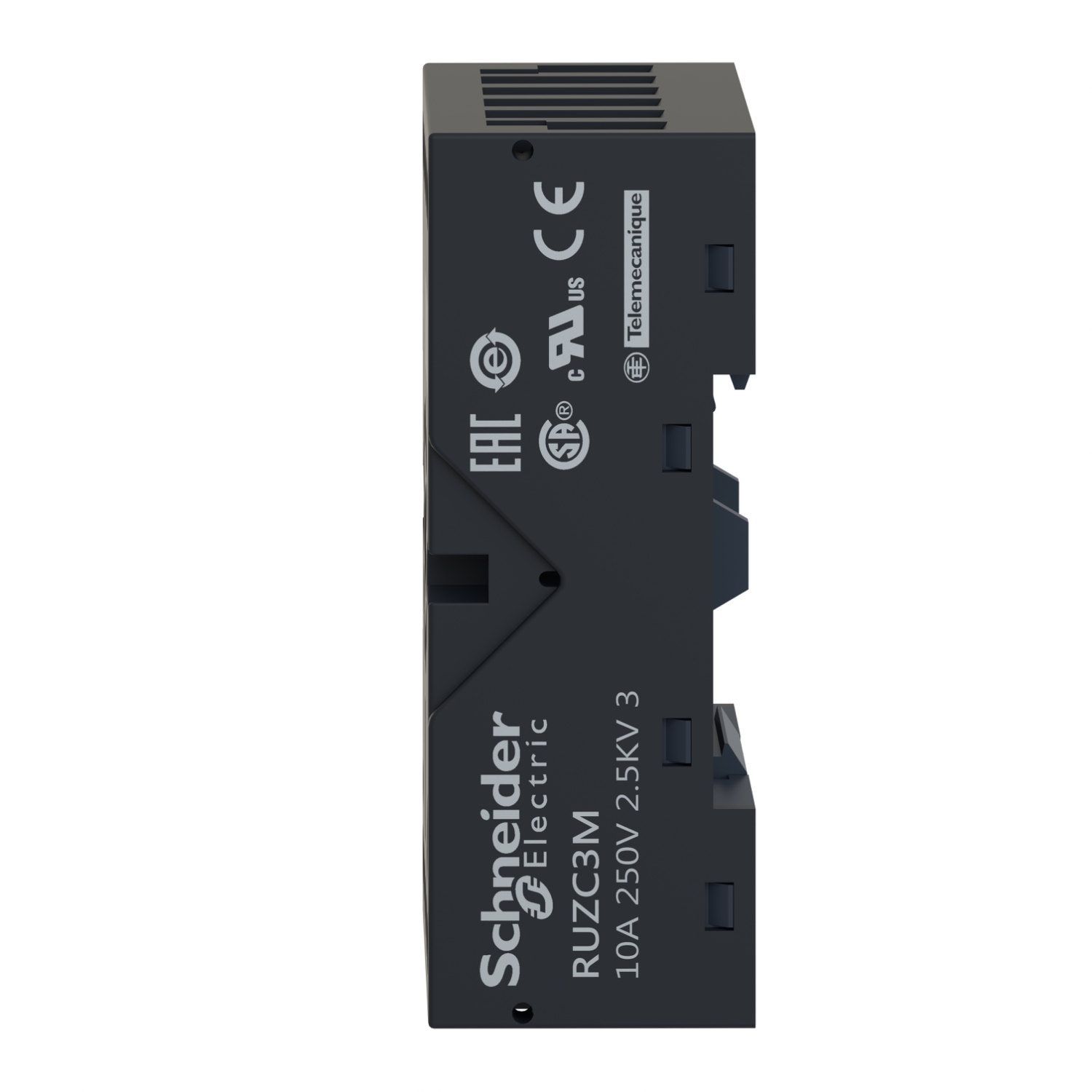

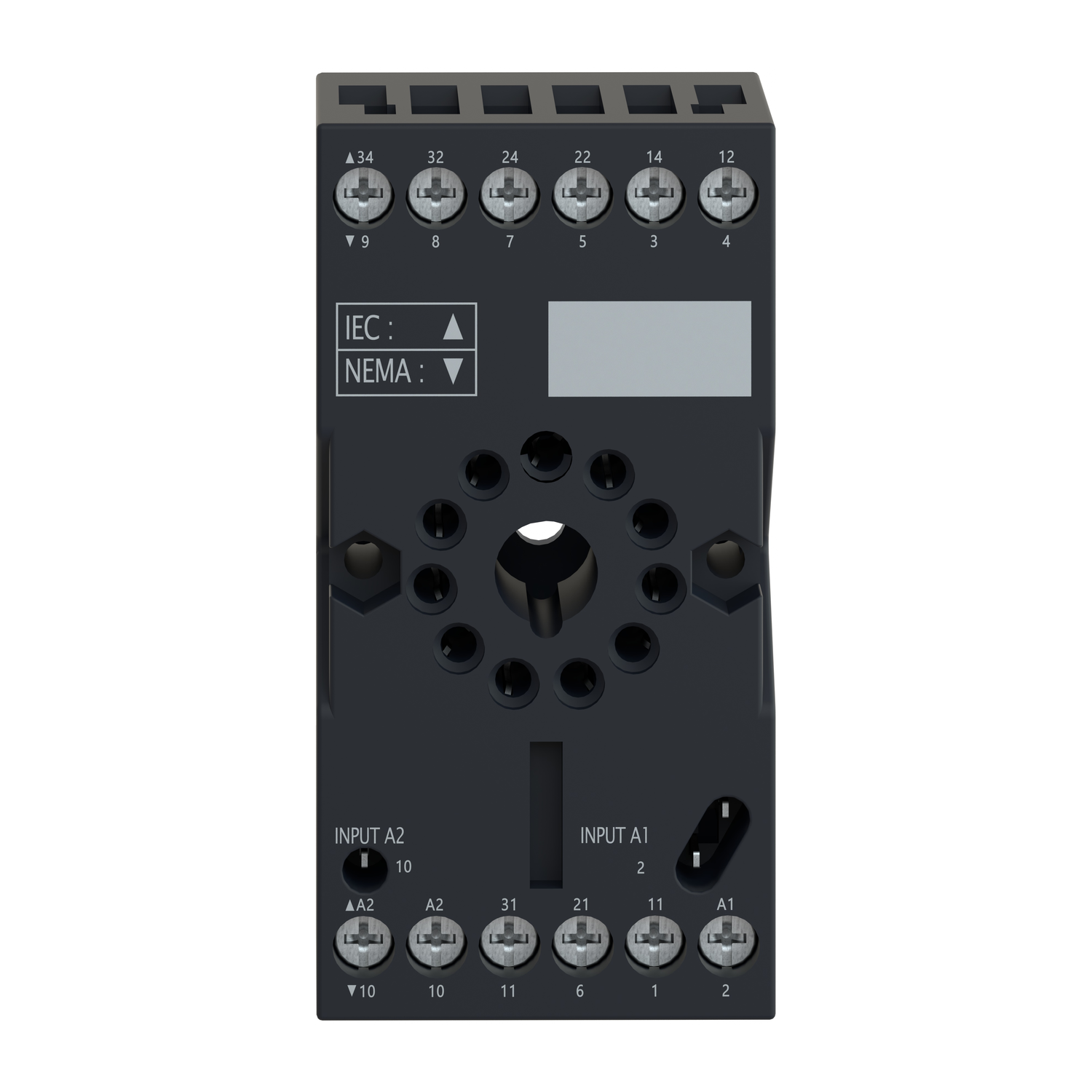

Priza Ruz, Contact Comb., 10A, 250V, Conector, pentru Releu Rxm2, , Rumc3
Documente
Specificatii
| Measurements | |
| Width | 38 mm |
| Height | 75 mm |
| Depth | 27 mm |
| Model/type | |
| Number of pins | 11 |
| With detachable clamps | No |
| Connection | |
| Type of electric connection | Screw connection |
| Options | |
| Function extension possible | Yes |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Package 1 | |
| volume | 80,028 cm3 |
| weight | 57 g |
| length | 7,8 cm |
| width | 3,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119403207 |
| Package 2 | |
| volume | 1017,912 cm3 |
| weight | 618 g |
| length | 14,6 cm |
| width | 8,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119403204 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 12,6 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 43389119403205 |
| Package 4 | |
| weight | 111,908 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1600 |
| qmin | 1600 |
| um | PF |
