Descriere

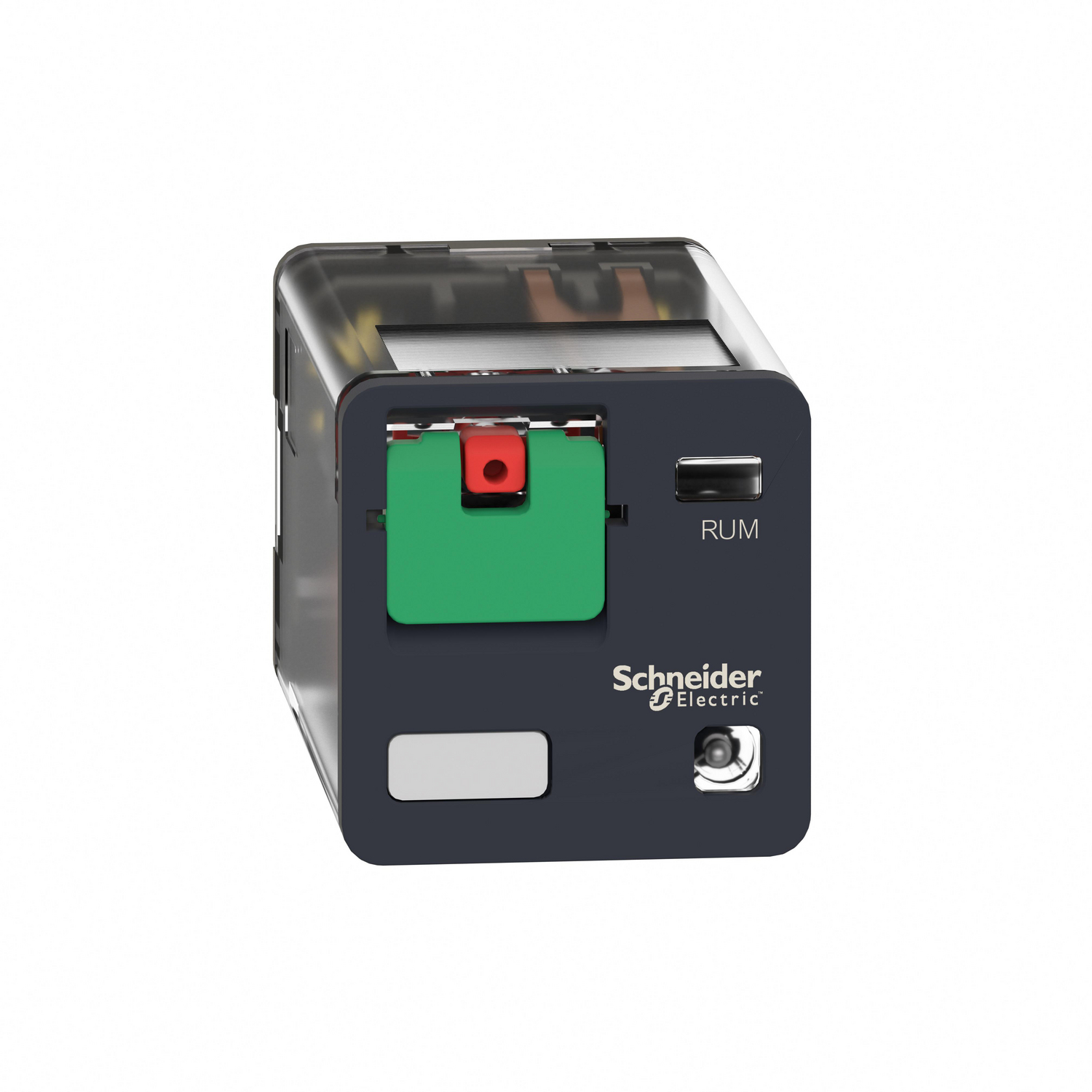

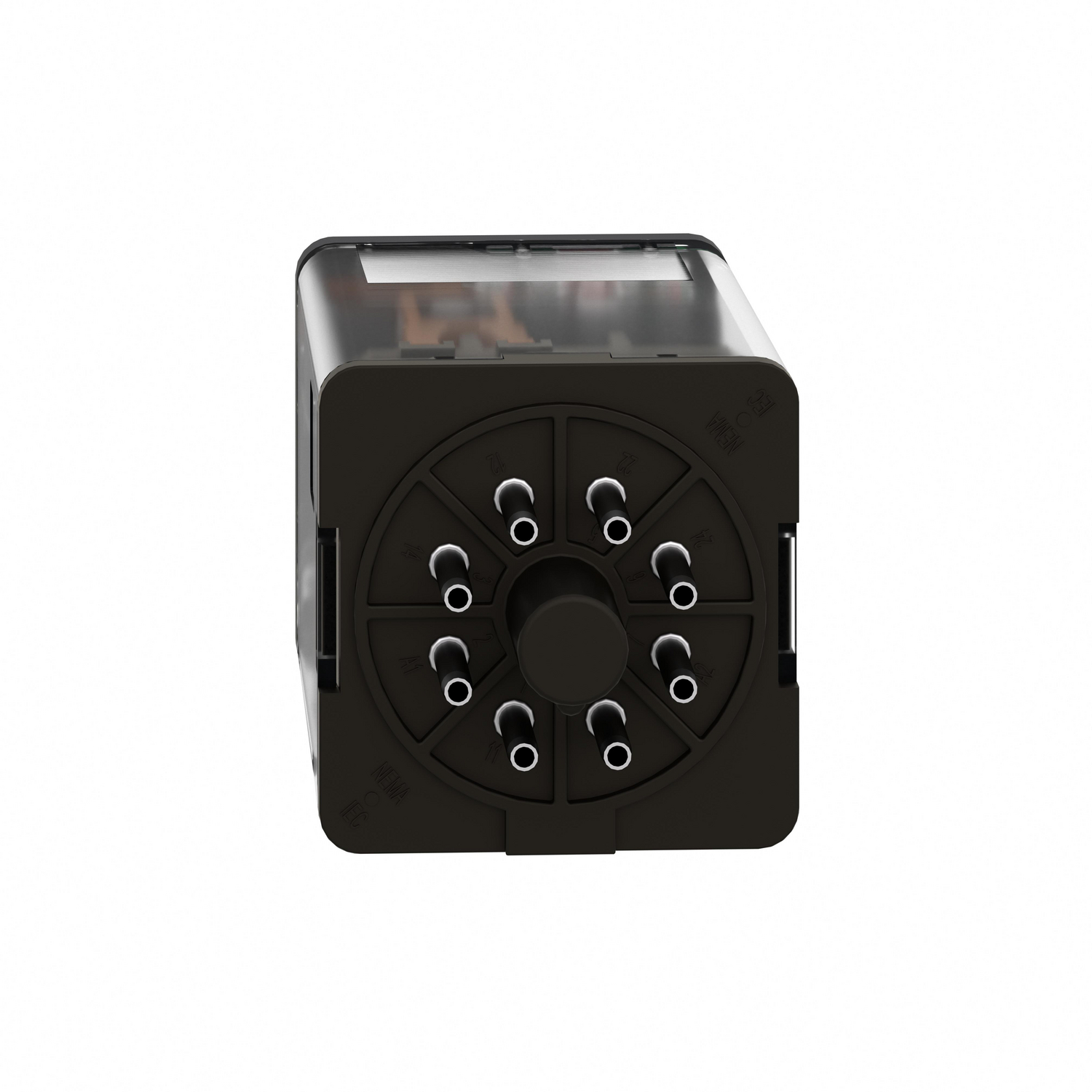

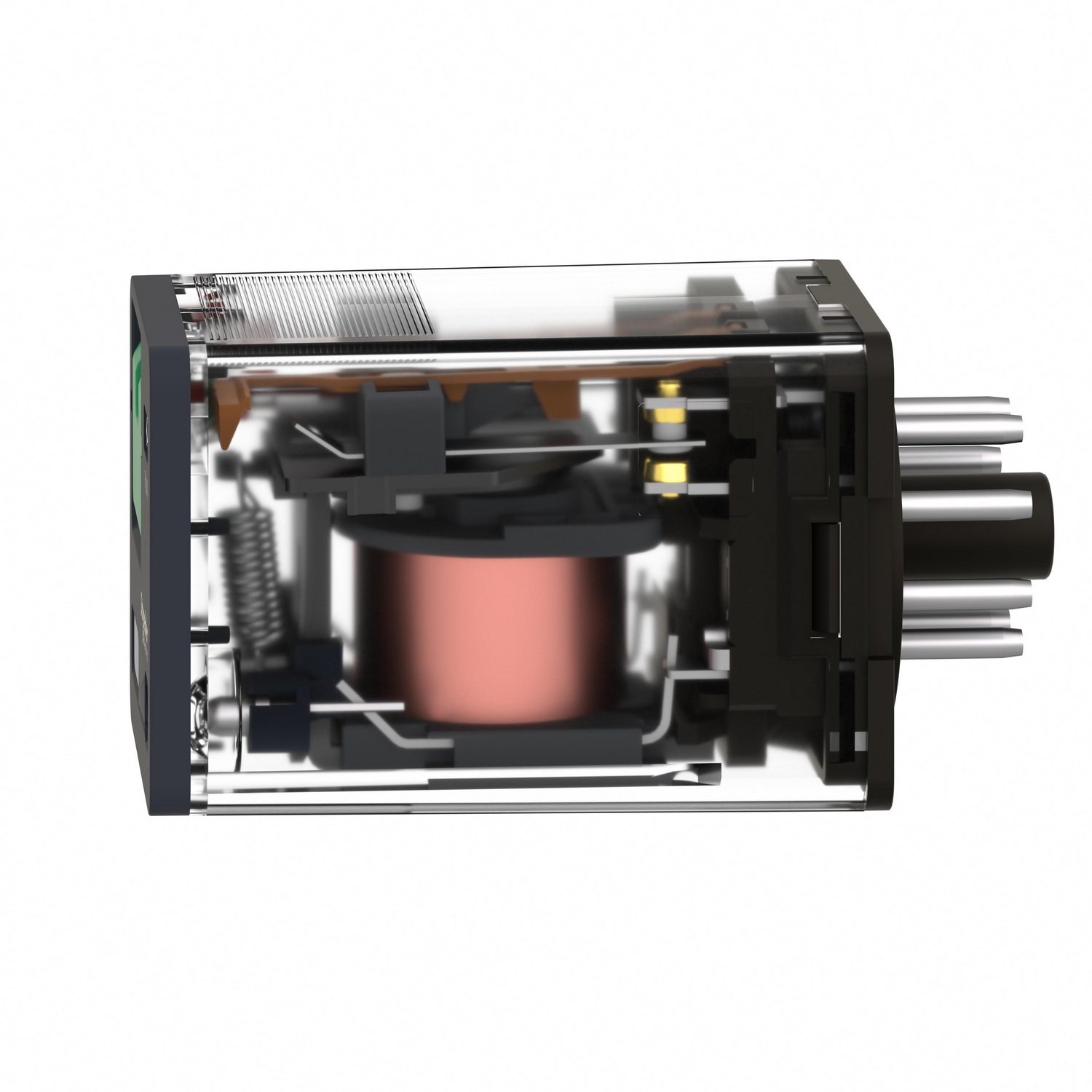

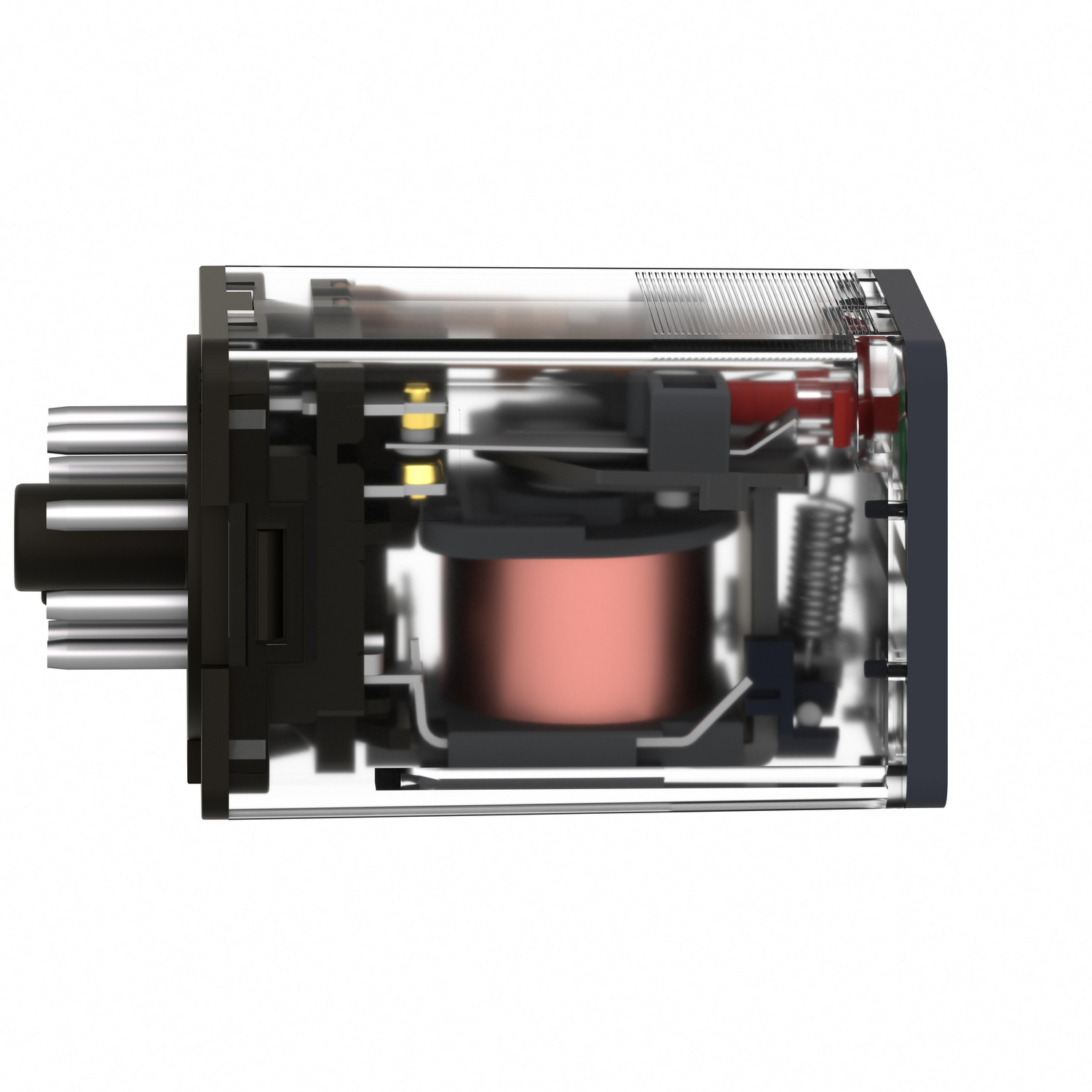

Releu Ambrosabil Universal, Zelio Rum, 3 C/O, 230 V Ca, 10 A, cu Led
Documente
Specificatii
| Measurements | |
| Width | 35 mm |
| Depth | 56 mm |
| Height | 35.4 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Nominal current | 10 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 3 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarized |
| Model/type | |
| With forced-guided contacts | Yes |
| With LED indication | Yes |
| Type of switch contact | Single contact |
| With detachable clamps | No |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 83,3 cm3 |
| weight | 94 g |
| length | 6,8 cm |
| width | 3,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480627019 |
| Package 2 | |
| volume | 1201,464 cm3 |
| weight | 990 g |
| length | 19,8 cm |
| width | 14,8 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480627016 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 6,45 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480627017 |
| Package 4 | |
| weight | 92,292 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 960 |
| qmin | 960 |
| um | PF |

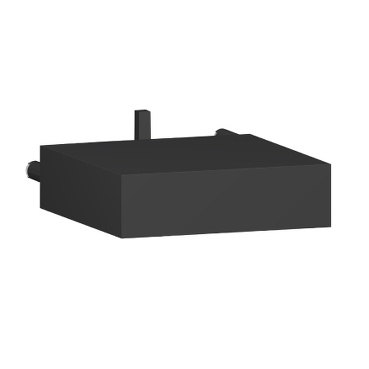

Accesorii
