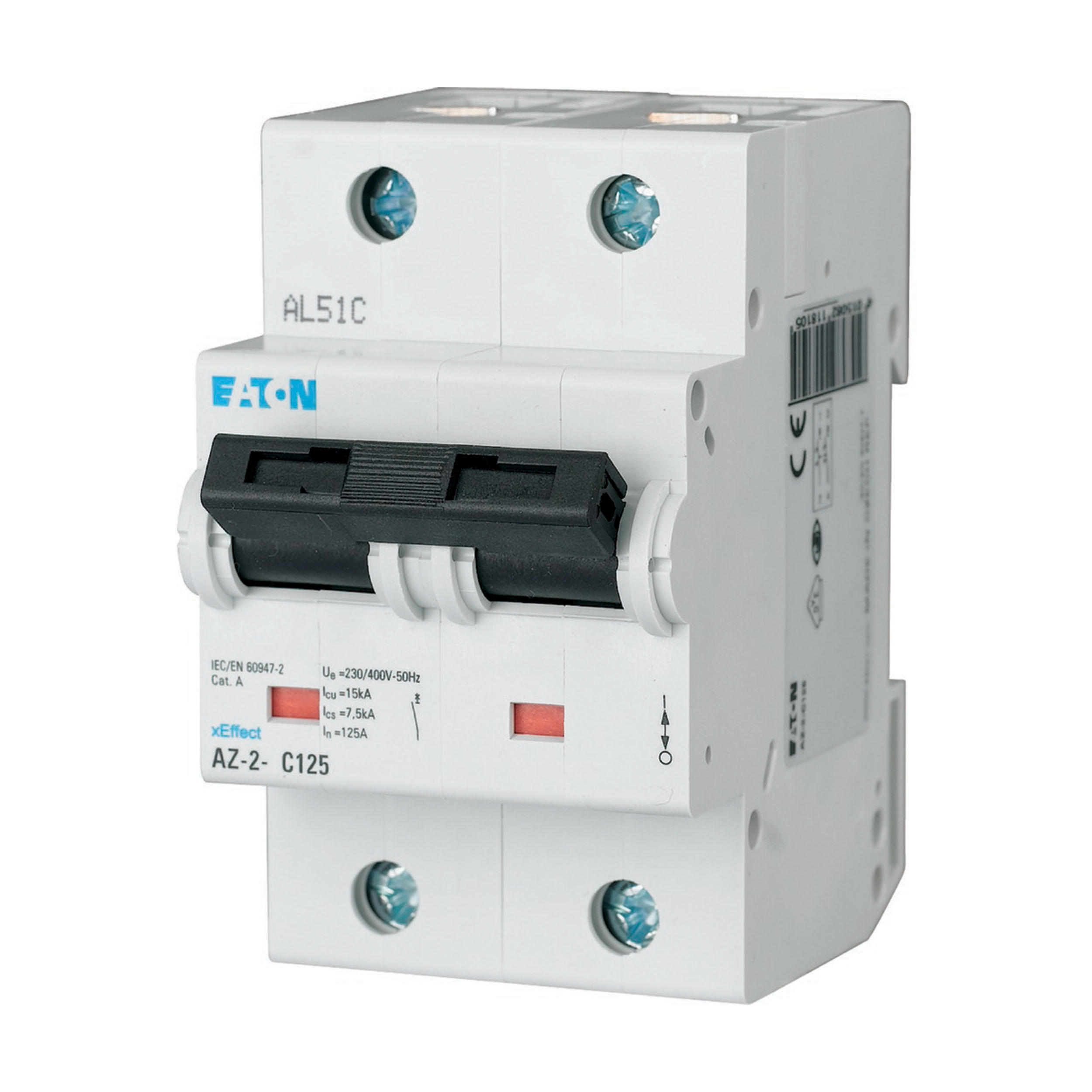

Miniature circuit breaker (MCB) AZ, 2 pole, Tripping characteristic: C, Rated current In: 125 A, Switchgear for industrial and advanced commercial applications
Specificatii
| Measurements | |
| Built-in depth | 75 |
| Width in number of modular spacings | 3 |
| Electrical | |
| Release characteristic | C |
| Rated current | 125 |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 0 |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 0 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 15 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 15 |
| Power loss | - |
| Current limiting class | 3 |
| Overvoltage category | 3 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Other | |
| Frequency | 50 |
| Pollution degree | 2 |
| Mounting/installation | |
| Flush-mounted installation | No |
| Options | |
| Concurrently switching neutral conductor | No |
| Additional equipment possible | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Connection | |
| Connectable conductor cross section multi-wired | 2.5 |
| Connectable conductor cross section solid-core | 2.5 |
| Package 1 | |
| volume | 0,0003645 |
| weight | 0,451667 |
| length | 0,092 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082118105 |
| Package 2 | |
| volume | 0,002417 |
| weight | 2,71 |
| length | 0,091 |
| width | 0,33 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 9008790880551 |
| Package 3 | |
| volume | 0,011578 |
| weight | 11,007 |
| length | 0,335 |
| width | 0,192 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 9008790884313 |
| Dimensions of product | |
| Volume | 0,0003645 |
| Weight | 0,439 |
| Length | 0,09 |
| Width | 0,054 |
| Depth | 0,075 |
