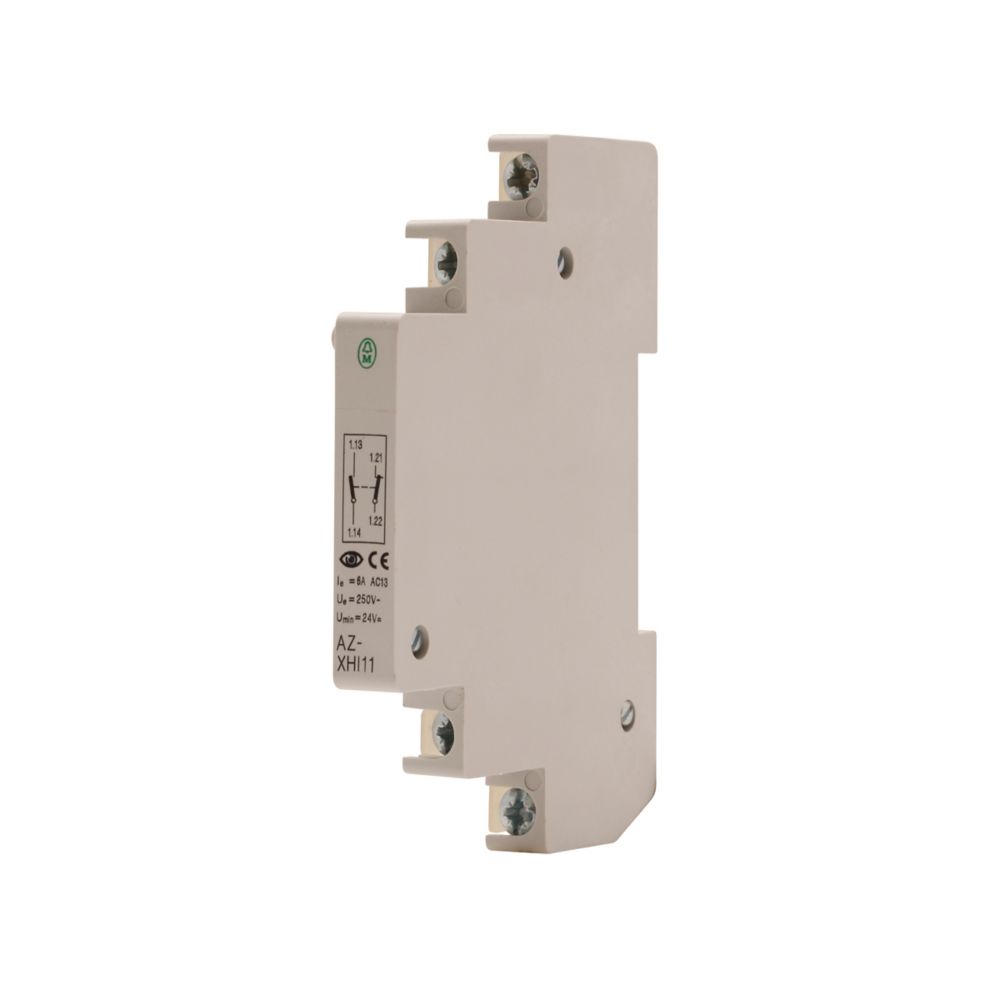

Descriere
AZ, + 1N/O for 1N/C, 0.5auxiliary contacts, for AZ, 1N/O+1N/C, 0.5 SU auxiliary contact, 1N/O+1N/CSU
Specificatii
| Other | |
| Device fitting | Universal |
| Model/type | |
| Function | Auxiliary switch |
| Number of fault-signal switches | 0 |
| With auto test for earth leakage function | No |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Electrical | |
| Rated switch current | 3 |
| Rated voltage | 230 |
| Voltage type | AC |
| Suitable for max. number of poles main contact unit (total) | 2 |
| Suitable for max. current main contact unit | 0 |
| Package 1 | |
| volume | 0,00005188 |
| weight | 0,046 |
| length | 0,092 |
| width | 0,0108 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082120672 |
| Package 2 | |
| volume | 0,000792 |
| weight | 0,276 |
| length | 0,113 |
| width | 0,091 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 9008790880339 |
| Package 3 | |
| volume | 0,01719 |
| weight | 5,7 |
| length | 0,385 |
| width | 0,19 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 9008790884061 |
| Dimensions of product | |
| Volume | 0,00005188 |
| Weight | 0,041 |
| Length | 0,09 |
| Width | 0,0088 |
| Depth | 0,0655 |
